A water filter can be perfectly fine and still end up blamed for a leak. Often the trouble is at one of the transitions around it: a hose swivel, adapter, tee, quick-connect, or threaded port. Every joint is another place where alignment, vibration, side-load, or the wrong seal can let water escape.
The good news: fittings are easier to troubleshoot once you identify what kind of connection you have and how it seals. This practical overview explains the common fitting types in RV water setups, shows how to connect them without forcing mismatched threads, and offers a simple way to track down drips.
If you’re planning a complete setup, it can also help to review the full RV water filter hookup sequence from spigot to RV inlet. This article focuses on the joints within that setup: choosing the right fitting, assembling it correctly, and keeping it secure while you travel.
Why small fittings deserve a close look
A filter housing or regulator gets a lot of attention because it is visible and central to the setup. But a leak can begin at the connection joining that component to a hose, adapter, or water line.
That’s because joints have to bring separate parts together and hold them in alignment. A hose can pull sideways on a swivel. A filter assembly can put weight on an adapter. Road vibration can gradually work a connection loose, while temperature changes can cause materials to expand and contract. A fitting that seemed secure when you first installed it may need inspection after travel.
A good first principle: don’t tighten harder until you know what is meant to make the seal. On one connection, that may be a flat washer. On another, it may be tapered threads with an appropriate sealant. On a push-to-connect fitting, it may be an internal O-ring that seals around tubing. Using the wrong method can make a leak worse.
For more examples of RV water filter installation mistakes that cause leaks, see our related article.

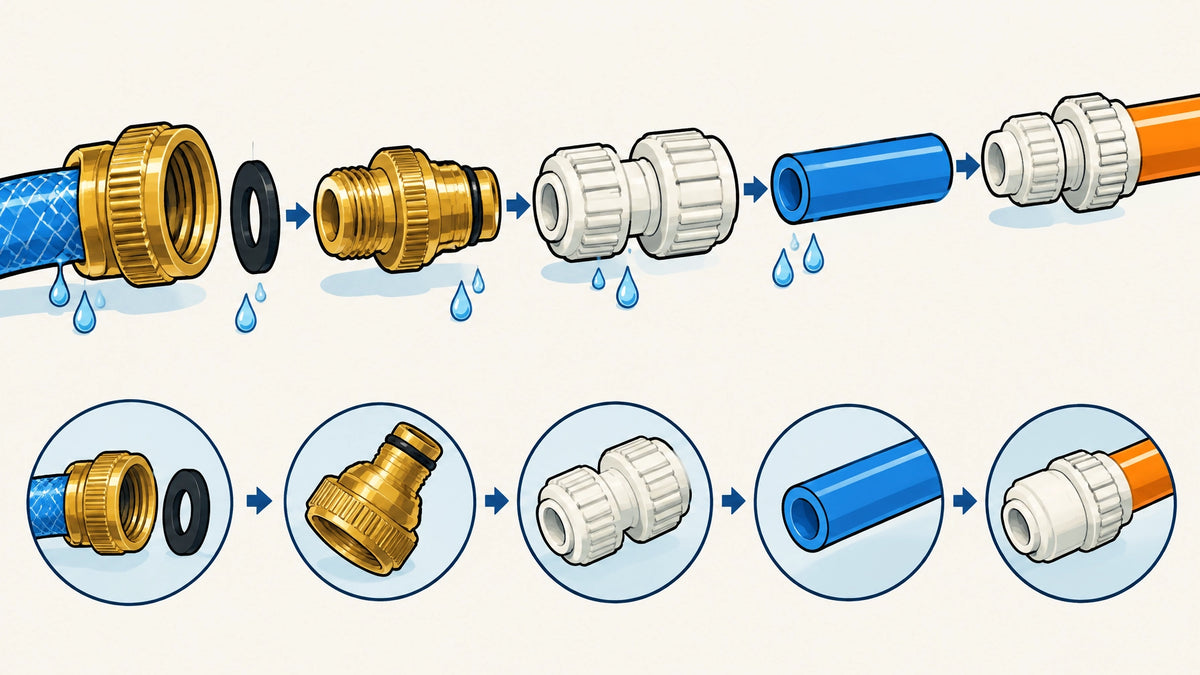

The fitting types RVers commonly encounter
Garden hose thread: the campground connection
Campground spigots and many external RV water accessories use garden hose thread, usually called GHT or NH. It’s the familiar hose connection: a female swivel turns onto a male threaded outlet, and a flat rubber washer inside the swivel seals against the mating face.
The threads hold the parts together; the washer makes the seal. That detail matters when a hose connection drips. Check the washer before adding tape or reaching for a wrench.
GHT fittings are often marked MHT (male hose thread) or FHT (female hose thread). The “3/4-inch” designation is a nominal size; it does not mean the connection uses the same thread form as 3/4-inch pipe thread.
Quick-connect couplers: fast hose connections
A quick-connect coupler lets you join and separate compatible hose ends without repeatedly turning a threaded swivel. Many RV water setups use them to make a filter assembly easier to attach, remove, or store.
The exact mechanism varies. On a typical two-part coupler, one half inserts into the other and a locking mechanism holds it in place. Depending on the design, you may move a sliding collar to connect or release the parts. Check that the pieces are compatible, push or slide them fully into their locked position, and give the connection a gentle tug before opening the water.
A drip may mean the coupler is not fully engaged, the sealing surface is dirty, or an internal seal is worn. Turn off the water and relieve pressure before disconnecting it. Don’t try to pull apart a pressurized connection.
Push-to-connect tube fittings: the collet and the tube
Push-to-connect fittings are another style of quick connection, but they work differently from hose couplers. They are used with specific tubing, including on some under-sink and inline-filter installations. A collet grips the tubing while an internal seal closes around its outside surface.
To connect one, the tube needs a square, clean cut with no burrs or damaged edges. Push it firmly into the fitting until it reaches the internal stop. A partially inserted tube may seem secure but can develop a slow leak once the line is pressurized.
To release the tube, first shut off the water and relieve pressure. Then push the release collar toward the body of the fitting while pulling the tube out. If the fitting or tubing manufacturer specifies a particular insertion depth or tube insert, follow those instructions.
Quick-connect is not one universal standard. A push-to-connect tube fitting and a hose quick-connect coupler do not necessarily fit each other. Match the connector to the fitting system, tube size, and intended application.
PEX and PEX transition fittings
PEX is tubing, not a threaded connection. It typically joins to compatible fittings with a crimp ring, clamp, or push-to-connect fitting. A transition fitting can connect the PEX side to a threaded port, hose thread, or another plumbing style.
Check both ends of the fitting before buying: the PEX side and the threaded side are separate specifications. A fitting for nominal 1/2-inch PEX is not automatically a 1/2-inch pipe-thread fitting.
If your project connects PEX to a garden hose connection, see our specific explanation of matching PEX and garden hose threads without leaks.
Barbed fittings and clamps
A barbed fitting has ridges that grip the inside of compatible flexible tubing or hose. The hose is pushed over the barb and secured with the appropriate clamp. Barbed fittings can be useful for suitable hose repairs or transitions, but the hose’s material and inside diameter must match the fitting.
Use components intended for the water application, and follow their installation instructions. A clamp that is too loose may allow a leak; one positioned incorrectly or tightened excessively can damage the hose. A repair should not leave a kink or put the joint under sideways tension.
Brass nipples and swivel fittings
A brass nipple joins two female threaded ports. It can be useful when two components need a simple threaded connection, but confirm the thread type on both sides before assembling them.
A swivel fitting is helpful when the hose or attached component would otherwise twist as you tighten a connection. Swivels let the body turn independently from the hose, reducing the risk of winding the hose up or putting torsion on the joint. They still need the correct washer or seal for their connection type.
Female and male garden-hose swivels
A female garden-hose swivel turns onto a male hose-thread outlet, such as a campground spigot. The swivel lets the hose end rotate while the hose itself stays still, which makes it easier to start the connection squarely and helps avoid twisting the hose.
If a swivel binds as soon as you start turning, stop. Check that the threads are aligned and that you have the right thread type. Forcing a crooked connection can damage the threads and leave a persistent leak.
The GHT-versus-NPT trap
This is one of the most common fitting mix-ups: GHT and NPT can both be labeled “3/4-inch,” but they are not interchangeable.
Garden hose thread is straight, or parallel, and normally seals with a flat washer. NPT, National Pipe Thread, is tapered. Its threads narrow along the fitting and are designed to seal through thread engagement, typically with an appropriate thread sealant when the fitting instructions call for one.
Because the sizes look similar, a mismatched fitting may start to turn and feel almost right. That does not mean it will seal. If you force it, the joint may bind, damage the threads, or weep despite repeated tightening.
Use an adapter designed for the exact transition. Then seal each side as intended: the NPT side according to its thread-sealing instructions and the GHT side with its washer. Don’t use a close-feeling fit as proof of compatibility.
Thread tape and hose washers: use the right seal
PTFE tape is for compatible threaded pipe connections, not the rubber-washer face seal on a garden hose swivel. For an NPT connection that requires tape, wrap the male threads in the direction you’ll tighten the fitting. Two or three wraps is a common starting point, but follow the tape and fitting manufacturer’s instructions. Keep tape away from the first thread and the water passage, and avoid piling on so much that the fitting becomes difficult to engage.
A GHT connection seals with a flat rubber washer. Inspect the washer for cracks, hardening, flattening, or displacement, then make sure it sits flat before connecting. Adding tape to a GHT swivel can prevent the washer from seating correctly. If the connection leaks, inspect the washer and alignment rather than assuming the threads need more tape.
Some fittings use an O-ring or another sealing method. Identify the fitting and follow its instructions instead of applying tape by habit.
Install push-to-connect fittings carefully
A push-to-connect tube fitting depends on a clean tube end and full insertion. For a reliable connection:
- Shut off the water and relieve pressure before working on the line.
- Cut the tubing squarely with a suitable cutter.
- Check for burrs, scratches, ovaling, or dirt at the tube end.
- Mark the insertion depth if the fitting instructions recommend it.
- Push the tube straight into the fitting until it bottoms out.
- Check that the collet is gripping the tubing, then give the tube a gentle tug.
- Pressurize slowly and inspect for leaks.
If you need to disconnect the tube, shut off the supply and depressurize first. Push the release collar toward the fitting while pulling the tube out. Pulling without pressing the collar can make removal difficult or damage the tube.
A tube that is not fully seated is a classic cause of a slow leak that appears only under pressure. If the tube end is damaged, cut it back to clean material and reconnect it according to the fitting maker’s instructions.
Support fittings against vibration and hose strain
Travel adds movement that a stationary hookup does not experience. Road vibration can gradually loosen connections, and hoses or heavy filter assemblies can pull on fittings if they are unsupported.
After installing a new setup, check it once more after the first 100 miles of travel. That’s a practical reminder to inspect your assembly after its initial road vibration, not a substitute for checking it regularly. Look for dampness, shifted hoses, loose brackets, or fittings that have begun to turn.
Support heavy filter assemblies independently so their weight does not hang from a hose swivel or adapter. Route hoses with gentle bends rather than kinks. And don’t tighten a swivel against a hose that is already twisted or kinked: that puts strain on the joint and can contribute to a weep.
For help diagnosing connection issues alongside other setup problems, see the article on installation mistakes that cause leaks. You can also review the available quick-connect fittings, parts and fittings, and hose accessories when you’ve identified what type of connection your setup needs.
Before freezing weather or storage
Fittings can hold residual water in their cavities even after a hose appears drained. Before freezing conditions, drain or blow down the system according to the component and RV manufacturer’s instructions. Water trapped in a fitting or connector can freeze and damage it.
Disconnect quick-connects as directed during freeze protection, and store them so their sealing surfaces stay clean. Inspect O-rings for flat spots, cuts, or other damage before reconnecting. If the seal is in good condition and its manufacturer permits it, a small amount of food-grade silicone grease can help protect the O-ring; don’t use petroleum-based grease or an unapproved lubricant.
When reconnecting after storage, make sure parts are fully seated, turn the water on gradually, and check each joint while the system is pressurized.
Fitting-selection table
| Task | Fitting type | What to check before buying |
|---|---|---|
| Connect a hose to a campground spigot | Female GHT swivel | The spigot is male GHT; the swivel has a clean, correctly sized washer |
| Join two hose ends | Compatible GHT adapter or quick-connect set | Correct male/female ends and matching quick-connect system |
| Connect PEX to a threaded component | PEX transition fitting | PEX size and connection method, plus the component’s thread type and size |
| Connect a hose to an NPT port | GHT-to-NPT adapter | Correct gender and size on both sides; washer for GHT and seal method for NPT |
| Join two female threaded ports | Brass nipple, if thread types match | Thread type, size, and whether the ports require a separate seal method |
| Keep a hose from twisting during tightening | Swivel fitting | Correct thread type and a washer or seal that matches the joint |
| Repair compatible flexible hose | Barbed fitting and clamp | Hose inside diameter, material compatibility, and appropriate clamp |
| Make a removable tubing connection | Push-to-connect fitting | Tube outside diameter, fitting compatibility, and manufacturer’s insertion requirements |
| Organize an external hose connection | Quick-connect coupler | Both halves are compatible and appropriate for the intended water setup |
You can browse hose accessories and pressure regulator parts for related hookup components. Match each fitting to the part it connects to rather than choosing by appearance alone.
Troubleshooting: symptom, likely cause, and fix
| Symptom | Likely fitting cause | First fix to try |
|---|---|---|
| Weep at the swivel | Missing, worn, crooked, or poorly seated washer; hose pulling sideways | Shut off water, inspect or replace the washer, reconnect squarely, and support the hose |
| Drip at a quick-connect | Coupler not fully locked, dirty sealing surface, or damaged seal | Depressurize, clean and inspect the parts, reconnect fully, and check the seal |
| Leak at the canister port | Wrong thread type, damaged port, or sealant used on the wrong connection | Verify GHT versus NPT and the manufacturer’s sealing method; don’t force the fitting |
| Spray at the spigot | Cross-threaded swivel, damaged washer, or damaged spigot threads | Turn off the water, remove the fitting, inspect alignment and washer, then restart by hand |
| Slow leak appears only under pressure | Partially inserted tube, damaged O-ring, or joint under strain | Depressurize, inspect the tube or seal, reseat the connection, and remove side-load |
| Fitting binds as soon as it starts | Mismatched thread type or cross-threading | Stop turning, back it off, identify both connection types, and use the correct adapter |
| Leak returns after adding tape | The connection may seal with a washer or O-ring rather than thread tape | Remove excess tape where appropriate and inspect the intended sealing surface |
| Hose connection loosens after travel | Vibration, twisting, or unsupported hose weight | Recheck the joint, correct the hose route, and support the assembly |
If water sprays from a connection, shut off the supply before troubleshooting. Don’t put a hand over a leak or try to tighten a fitting while it is under pressure.
A quick pre-trip fitting check
Before leaving the water hookup in service, take a moment to:
- Confirm that GHT, NPT, PEX, and tubing connections are correctly matched.
- Check that hose swivels have intact, flat washers.
- Verify that push-to-connect tubing is fully seated.
- Make sure quick-connect couplers are locked.
- Confirm that hoses are not kinked, twisted, or pulling sideways.
- Support heavy filters and hoses so fittings don’t carry their weight.
- Turn on water gradually and inspect every connection.
- Recheck the setup after travel, especially after the first 100 miles.
- Drain fittings before freezing conditions, following manufacturer instructions.
RV water fittings are small, but each one is an important transition in the setup. Identify the connection, use the sealing method it was designed for, and avoid forcing parts that don’t turn smoothly. Those simple habits can help prevent a minor fitting issue from becoming a persistent leak.
