An RV water filter can be correctly selected and still perform poorly if it is installed incorrectly. A misplaced seal, damaged thread, unsupported hose, or unflushed carbon cartridge can lead to leaks, low flow, black particles in the water, or a filter that fails long before it should.
Most installation problems are preventable. The key is to slow down during setup, identify how each connection seals, and test the system before leaving it pressurized and unattended.

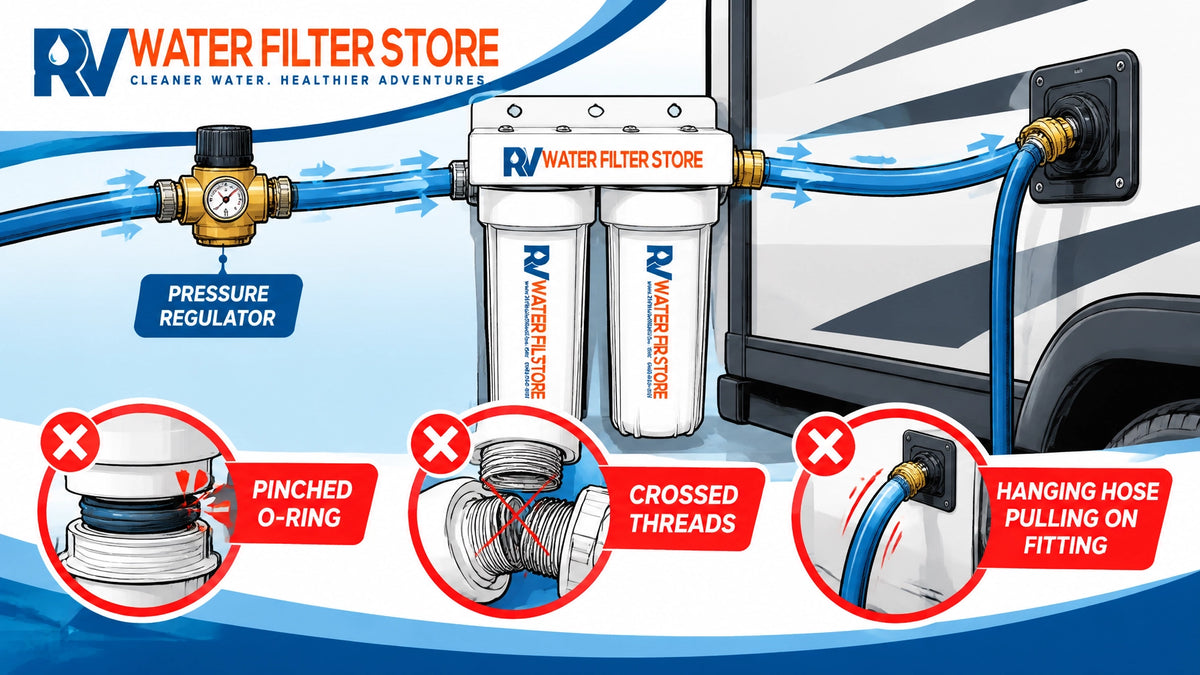

This article covers the installation mistakes most likely to cause trouble, including:
- Not flushing a new carbon cartridge
- Mishandling O-rings and housing seals
- Over-tightening filter housings
- Cross-threading fittings
- Using thread sealant incorrectly
- Mounting the filter without service clearance
- Placing the filter incorrectly relative to a water softener
- Using a non-potable garden hose
- Skipping the pressure regulator
- Allowing hose weight to pull on fittings
- Trapping air in the filter housing
- Storing the RV with old water in the lines
For system options, see the RV water filtration systems collection. If you are installing a system you already own, the same inspection and connection practices apply.
1. Failing to flush a new carbon cartridge
Symptom
The first water from the RV may look gray or black. Small black particles may appear in the faucet aerator, showerhead, or drinking-water outlet. Flow may also become restricted if carbon fines collect in a small screen or aerator.
Why it happens
Carbon block cartridges can release loose carbon dust, sometimes called carbon fines, when they are first placed into service. This is normal for many carbon cartridges, but the particles need to be flushed out before the water enters the RV plumbing.
Connecting the outlet directly to the RV and turning on a faucet sends that initial material through the coach. The result can be dirty-looking water, clogged faucet screens, or confusion about whether the cartridge is defective.
Fix
Before connecting the filter outlet to the RV, flush the new cartridge according to the cartridge manufacturer’s instructions. As a practical process:
- Connect the filter to the water source.
- Leave the outlet pointed into a bucket or safe drainage area.
- Open the water supply slowly.
- Run water until it is clear and free of visible black particles.
- If the cartridge instructions specify a flushing volume or time, follow those instructions.
- Disconnect the outlet or close the supply before making the final RV connection.
Do not judge the cartridge by the first few seconds of water. Initial carbon fines are different from a continuing filtration problem. If black particles continue after proper flushing, shut down the system and inspect the cartridge, housing, and flow direction.
You can find replacement carbon, sediment, and specialty cartridges in the replacement filter cartridges collection.
2. Installing an O-ring dry, dirty, or out of position
Symptom
Water leaks from the joint between the filter head and canister sump. The leak may begin as a slow drip and become worse when the system is pressurized. In some cases, the housing may be difficult to open later because the seal has stuck or flattened.
Why it happens
A canister housing depends on the O-ring being clean, flexible, and correctly seated in its groove. Several small errors can prevent it from sealing:
- The O-ring is dry and twists during assembly.
- Dirt or carbon dust sits in the O-ring groove.
- The O-ring is pinched between the head and sump.
- The seal is installed on the threads instead of in its groove.
- An old, flattened, swollen, or cracked O-ring is reused.
- A second O-ring is accidentally installed over the original one.
The threads draw the housing together, but the O-ring does the sealing. Tightening harder does not compensate for a damaged or misplaced seal.
Fix
Before assembling the housing:
- Shut off the water supply and relieve pressure.
- Remove the O-ring and inspect it under good light.
- Clean the groove and sealing surfaces with clean water and a lint-free cloth.
- Replace the O-ring if it is cracked, flattened, permanently stretched, brittle, or swollen.
- Apply only a thin film of manufacturer-approved, food-grade silicone lubricant if the instructions permit it.
- Place the O-ring evenly in its groove.
- Confirm that it is not twisted or riding up on one side.
- Reassemble the housing without forcing the threads.
Do not use petroleum grease, automotive grease, pipe dope, or an unknown lubricant on a drinking-water filter seal. Those products may damage the rubber or be inappropriate for potable-water contact.
3. Over-tightening the canister housing
Symptom
The housing leaks despite being extremely tight, becomes difficult to remove, or develops a crack near the threads. A flattened O-ring may also leak after the housing is reopened.
Why it happens
A plastic filter housing is not sealed by brute force. Excessive tightening can deform the O-ring, distort the housing, damage the threads, or create stress cracks. It can also make routine cartridge service unnecessarily difficult.
Many owners tighten a leaking housing harder because the leak appears to come from the threaded joint. The better approach is to stop, depressurize the system, and inspect the seal.
Fix
With the O-ring clean and properly seated, tighten the sump according to the filter manufacturer’s instructions. When no more specific instruction is available, hand-tighten the housing until the seal makes even contact, then add only a small additional turn, commonly about a quarter turn.
Do not use a wrench on the housing unless the manufacturer specifically directs you to do so. A housing wrench may be useful for loosening a stuck sump, but it should not be used to force a new seal into place.
If the housing still leaks:
- Stop tightening.
- Turn off the water.
- Release pressure.
- Check the O-ring and groove.
- Look for a crack or damaged thread.
- Confirm that the sump is aligned squarely with the head.
4. Cross-threading the housing or a fitting
Symptom
A fitting becomes difficult to turn almost immediately. The connection sits crooked, leaks from one side, or refuses to tighten smoothly. A canister may appear tight but still leak because the housing is not aligned correctly.
Why it happens
Cross-threading occurs when male and female threads start at an angle or when a connection is forced before the threads are correctly engaged. Plastic threads are especially easy to damage. Cross-threading can happen when:
- The fitting is started with a wrench instead of by hand.
- The hose pulls the fitting sideways.
- Debris is caught in the threads.
- A fitting with a different thread standard is inserted.
- The housing is tightened while the sump is tilted.
A properly matched connection should start smoothly. Resistance during the first turn is a warning, not an invitation to apply more torque.
Fix
Always start threaded connections by hand. Turn the fitting or housing backward slightly until the threads drop into alignment, then turn forward slowly. The connection should advance smoothly.
If it binds after a turn or two:
- Stop.
- Back it out.
- Inspect both thread sets.
- Clean away debris.
- Check that the fitting is the correct type.
- Restart it straight by hand.
Do not use thread sealant to hide cross-threading. Tape or paste may make the connection feel tighter, but it will not repair damaged or mismatched threads.
The parts and fittings collection includes RV plumbing components such as hose adapters, PEX fittings, nipples, quick connects, washers, and replacement parts. Match the connection type before installation.
5. Using thread sealant on the wrong connection
Symptom
A hose connection drips even after tape is applied. The fitting may be difficult to tighten, the rubber washer may not seat correctly, or a connection may split because too much force was used.
Why it happens
Not all threads seal the same way. Two common connection types on RV water equipment are:
- Garden hose thread, or GHT: Usually a straight thread that seals against a rubber washer.
- National Pipe Thread, or NPT: A tapered pipe thread that generally seals along the threads with an appropriate sealant, unless the fitting uses another sealing method such as an O-ring.
Applying Teflon tape to a garden hose connection does not replace the washer. It can interfere with the washer’s seating and encourage over-tightening. On the other hand, omitting the correct sealant from a tapered NPT connection can allow a slow leak.
Fix
For GHT connections:
- Inspect the rubber washer.
- Replace it if it is missing, cracked, hard, or flattened.
- Keep the washer clean.
- Tighten the connection firmly by hand, then only slightly more if needed.
- Do not rely on tape to seal the hose thread.
For tapered NPT connections:
- Confirm that the fitting is actually NPT.
- Use the sealant recommended for the fitting and potable-water application.
- Apply it only to the male tapered threads.
- Keep sealant away from O-rings, washers, and the water passage.
- Start the fitting by hand and tighten carefully.
Do not assume that every 3/4-inch connection uses the same sealing method. Thread diameter alone does not identify the thread standard.
6. Mounting the filter where the sump cannot be removed
Symptom
The filter works initially, but cartridge service becomes difficult or impossible. The canister hits the floor, a wall, a storage compartment, or another component before it can be lowered far enough to remove the cartridge.
Why it happens
A filter housing needs more than enough room for the system itself. The sump must be removable, the cartridge must be accessible, and the operator must be able to inspect the O-ring without working at an awkward angle.
A cramped installation often leads to shortcuts:
- The sump is forced sideways.
- The housing is left partially tightened.
- A wrench is used where hand service was intended.
- The cartridge is replaced without cleaning the sealing surface.
- The filter is left installed permanently because service is inconvenient.
Fix
Before drilling or permanently mounting the filter head:
- Hold the system in the proposed position.
- Account for the full length of the sump.
- Leave room below the housing for removal.
- Leave room on the sides for hose connections and inspection.
- Make sure the mounting surface can support the filter head and plumbing.
- Confirm that the hose will not bend sharply when the sump is removed.
For an exterior installation, protect the system from road debris and avoid placing it where a low obstacle can strike the housing. For an interior installation, avoid locations where a small leak could reach electrical equipment or stored belongings.
7. Placing the filter incorrectly relative to a water softener
Symptom
The filtration system does not protect the softener as intended, the overall installation has unnecessary restrictions, or water quality changes depending on which component is in use.
Why it happens
Separate filtration and softening equipment must be installed according to the design of the individual components. A common mistake is to add a filter downstream of a softener simply because that location is convenient.
When filtration is placed after the softener, the filter does not protect the softener from incoming sediment and other material that the upstream filter was meant to handle. The added filter may also create another service point and another potential leak.
Another mistake is installing components in a chain without checking the intended inlet and outlet direction. A softener or filter may be connected to the wrong port, or a component may be placed where it cannot be bypassed or serviced.
Fix
Plan the system before connecting hoses. For a typical separate-component installation, filtration is commonly placed upstream of the softener so the incoming water is filtered before it reaches the softening equipment. However, the instructions for your specific system take priority.
Check:
- The inlet and outlet markings on every component.
- The manufacturer’s recommended position.
- Whether the softener is designed to receive filtered water.
- Whether the filter can be serviced without dismantling the entire chain.
- Whether the flow direction arrows point toward the RV.
Do not add a downstream filter merely to use an available connection. If the system has a special treatment stage or a manufacturer-specified order, follow that design instead.
8. Using an ordinary garden hose instead of a potable-water hose
Symptom
The water may develop an unpleasant plastic or rubber character after sitting in the hose. The hose may kink easily, shed material, or fail at the fitting because it was not designed for RV water service.
Why it happens
A general-purpose garden hose is not automatically suitable for drinking-water contact. It may contain materials intended for irrigation or outdoor utility use rather than potable water. It may also have a smaller or less consistent internal passage, causing avoidable restriction.
A hose that looks clean outside can still be unsuitable for the water system.
Fix
Use a hose intended and labeled for potable-water service. Inspect it before each installation for:
- Cracks near the fittings
- Flattened sections
- Kinks
- Damaged washers
- Debris inside the opening
- Loose or leaking swivel ends
Keep the potable hose capped when stored so dirt and insects do not enter. Do not drag the ends across the ground and then connect them directly to the filter or RV inlet.
A suitable hose is part of the water system, not just an accessory used to reach the spigot.
9. Skipping the pressure regulator
Symptom
Connections seep or fail under campground pressure. The filter housing may be exposed to more pressure than intended, and flow may vary sharply from one site to another.
Why it happens
Campground water pressure is not uniform. A system that performs normally at one site may be exposed to substantially different pressure at another. Without a regulator, the hose, filter housing, fittings, and RV plumbing receive the incoming pressure directly.
Installing a regulator after the filter leaves the filter housing unprotected. Installing a regulator but setting it too low can also create a low-flow complaint.
Fix
Use a pressure regulator designed for RV water service and place it upstream of the filter and RV plumbing. Attach it at or near the campground spigot so the hose and filter are protected as well.
If using an adjustable regulator:
- Set it according to your RV manufacturer’s water-pressure limit.
- Confirm the setting with the gauge or adjustment instructions.
- Do not assume the regulator is correctly set just because it is new.
- Check the regulator’s screen and fittings if flow becomes unexpectedly restricted.
The adjustable regulators collection includes fixed and adjustable options. Choose based on the RV’s requirements, desired flow, and installation conditions rather than selecting solely by appearance.
10. Allowing hose weight to hang from a fitting
Symptom
A connection develops a leak after the system has been moved, the hose pulls a filter head sideways, or a fitting cracks near the connection. The leak may appear only when the hose is full of water.
Why it happens
A full hose is heavier than an empty hose. If the hose hangs from a filter inlet, regulator, or RV city-water connection, its weight creates constant sideways force. Movement from wind, people walking by, or an RV door closing can add more stress.
The fitting may remain dry during an initial test and begin leaking later as the hose shifts.
Fix
Support the hose independently of the filter and fittings. Use a hose support, strap, hook, or stable surface to keep the hose from hanging directly from the connection.
Allow enough slack for normal movement without creating a sharp bend. Avoid placing the filter where the hose must make a tight turn immediately at the fitting.
After pressurizing the system, inspect connections again with the hose full. A dry connection during setup is not proof that it will remain stress-free.
11. Trapping air in the filter housing without bleeding it
Symptom
The first faucet flow sputters, the filter makes unusual bubbling sounds, or water flow starts and stops while the housing remains partly filled with air.
Why it happens
A newly assembled housing contains air. If the housing is pressurized quickly, that air can remain trapped above the cartridge. A small amount of air is not automatically a failure, but an unbled housing can make it difficult to tell whether the system has a leak, a flow restriction, or simply an air pocket.
Air can also remain if all downstream faucets are closed while the filter is filled.
Fix
After confirming that the cartridge is installed correctly:
- Open the water supply slowly.
- Use the housing’s built-in pressure-relief button if the manufacturer provides one.
- Open a nearby cold-water faucet.
- Allow the housing to fill gradually.
- Continue until the faucet runs steadily.
- Close the faucet and check the housing and fittings for leaks.
Do not press a relief button or loosen a housing while the system is pressurized unless the component instructions specifically describe that procedure. Always depressurize before opening the filter.
12. Leaving old water in the lines during storage
Symptom
After storage, the first water from the hose or filter smells stale, contains visible debris, or requires prolonged flushing before it is suitable for use. Seals may also become dirty or sticky.
Why it happens
Water left sitting in hoses, filter housings, and short connecting lines can become stagnant. Dirt and residue can remain around washers, fittings, and cartridge surfaces. When the system is connected again, that old water is pushed into the RV.
This is especially easy to do when an owner disconnects the campground spigot but leaves the filter, hoses, and housing full.
Fix
At the end of a trip or storage period:
- Turn off the water supply.
- Relieve pressure before disconnecting components.
- Drain the hose and filter housing according to the manufacturer’s instructions.
- Remove and store cartridges as directed for the specific cartridge.
- Allow parts to drain rather than sealing them wet.
- Inspect and clean washers and connection openings.
- Cap clean connections during storage.
- Flush the system before using it again.
Do not store a cartridge or housing in a way that contradicts the cartridge manufacturer’s storage instructions. If the RV water system itself requires separate cleaning or sanitizing, follow the RV manufacturer’s procedure.
Symptom-to-mistake table
| Symptom | Likely installation mistake | Why it happens | First fix to try |
|---|---|---|---|
| Black particles in the first water | New carbon cartridge was not flushed | Carbon fines entered the plumbing | Flush the cartridge to a bucket until the water runs clear |
| Leak at the canister seam | O-ring is dry, dirty, pinched, or damaged | The O-ring cannot form an even seal | Depressurize, clean the groove, inspect the O-ring, and lubricate only with approved food-grade silicone |
| Housing is extremely tight but still leaks | Canister was over-tightened or installed crooked | Tightening damaged the seal or stressed the housing | Stop tightening and inspect the O-ring, threads, and housing for damage |
| Fitting binds immediately | Cross-threaded or mismatched connection | Threads started at an angle or are not the same type | Remove it and restart by hand; replace damaged parts |
| GHT connection leaks after tape was applied | Thread sealant was used instead of relying on the washer | GHT seals at the washer, not along the threads | Remove excess tape, inspect or replace the washer, and reconnect |
| NPT connection seeps | Tapered pipe threads lack suitable sealant | The threads do not seal adequately by themselves | Confirm the fitting type and apply approved sealant to the male NPT threads |
| Cartridge service is difficult | Filter was mounted without sump clearance | The sump cannot be lowered or removed | Relocate or remount the filter with adequate service space |
| Softener is not protected from incoming material | Filter was installed downstream of the softener | The filter cannot protect the upstream softener | Recheck the manufacturer’s system design and place filtration where specified |
| Water system has inconsistent flow | No regulator, regulator is set too low, or hose is restricted | Incoming pressure or a restricted connection is affecting the system | Verify regulator placement and setting, then inspect hoses and screens |
| Connection leaks after the system is moved | Hose weight is hanging on the fitting | Side load stresses the connection | Support the hose separately from the filter and RV inlet |
| Faucet sputters after installation | Air remains trapped in the housing | The housing was pressurized too quickly or not bled | Open a faucet and bleed the housing according to its instructions |
| Stale water appears after storage | Water was left in hoses or housing | Standing water remained in the system | Drain components before storage and flush before reuse |
RV water filter installation checklist
Use this checklist whenever you install a new system, reconnect after travel, or change the plumbing around an existing filter.
Before connecting anything
- Read the instructions for the specific filter, cartridge, regulator, and softener.
- Confirm the inlet and outlet on every component.
- Identify which connections use washers and which use tapered thread sealant.
- Inspect hoses, washers, O-rings, fittings, and housing threads.
- Confirm that the filter location allows the sump to be removed.
- Make sure the mounting surface is stable.
- Verify that the hose will not hang from or twist the filter fittings.
During assembly
- Install the cartridge in the correct position and orientation for the housing.
- Clean the O-ring groove and sealing surfaces.
- Replace damaged or flattened O-rings.
- Apply only approved food-grade silicone lubricant when directed.
- Start all threaded fittings by hand.
- Stop if a fitting binds or turns crooked.
- Use a washer on GHT connections.
- Use appropriate sealant only on connections designed to seal along tapered threads.
- Hand-tighten the canister, then add only the small additional turn specified by the manufacturer.
- Do not use a wrench to force plastic housings closed.
Before putting the RV into service
- Place the pressure regulator upstream of the filter and RV plumbing.
- Support the hose so its weight does not pull on a fitting.
- Flush a new carbon cartridge before connecting the outlet to the RV.
- Open the supply slowly.
- Bleed trapped air according to the housing instructions.
- Inspect every connection with a dry paper towel.
- Watch the canister seam and fittings while the system is pressurized.
- Open a faucet briefly and confirm steady flow.
- Recheck the system after it has remained pressurized for several minutes.
Before storage
- Shut off the supply and relieve pressure.
- Drain hoses and the filter housing as directed.
- Follow the cartridge manufacturer’s storage instructions.
- Inspect washers and O-rings before the next installation.
- Cap clean connections to keep out dirt and insects.
- Flush the system before returning it to service.
When to stop troubleshooting and replace a part
Some problems should not be solved by tightening harder or adding more sealant. Replace the component or fitting if you find:
- A cracked filter housing
- Damaged or flattened threads
- A permanently deformed O-ring
- A fitting that will not start straight
- A missing or damaged hose washer
- A regulator that cannot maintain its intended setting
- A hose with cuts, bulges, or a damaged end
- A leak that remains after the correct seal and connection method have been verified
A small replacement part is usually easier to deal with than water damage inside an RV. The parts and fittings collection can help you locate replacement washers, adapters, fittings, housings, and connection hardware.
A reliable installation is less about force and more about matching the right seal to the right connection, protecting the system from excessive pressure, leaving room for service, and testing every joint before use. Take those steps at setup, and your RV water filter is far less likely to become the source of a leak or low-flow problem.
