When an RV faucet runs weakly on the fresh-water tank, the filter often gets blamed first. But when you’re using the onboard tank, the pump and the parts around it are also worth checking. A small, clogged pump strainer, an air leak, or a waterlogged accumulator can affect the whole rig.
The useful clue is which water mode has the problem. On tank water, the pump supplies pressure. On city water, the campground supply and regulator do that job, while the pump is usually idle or isolated by a check valve. That difference helps you decide where to look before changing a filter or replacing a pump.

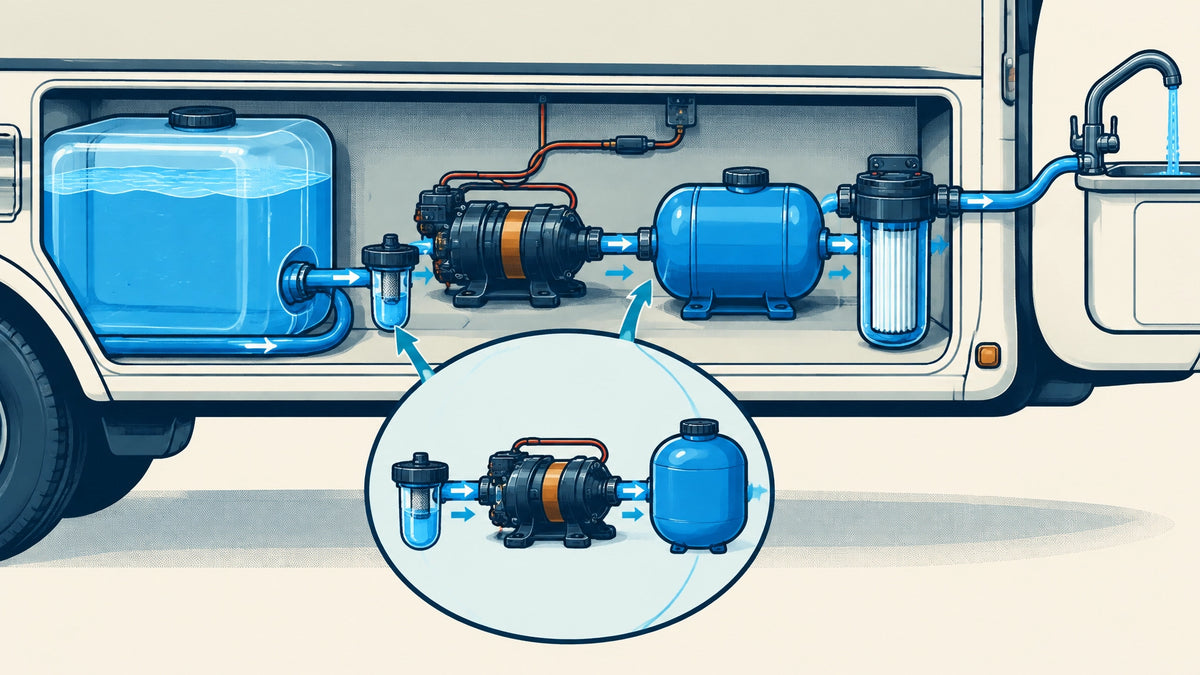

This article explains how a demand pump cycles, what its strainer and accumulator do, how filtration fits into a pumped system, and what common symptoms can tell you. Pump designs and service procedures vary, so check your pump and component manuals before opening, adjusting, or winterizing anything.
How a 12V demand pump works
An RV fresh-water demand pump is designed to run when water is needed and stop when it isn’t. When you open a faucet, water leaves the pressurized plumbing. As pressure falls below the pump’s cut-in point, a pressure switch signals the motor to run. Once pressure rises to the pump’s shut-off point, the switch turns it off.
That means some cycling is normal: a short burst as demand begins, and another when pressure needs restoring. How often the pump runs depends on the pump design, water use, plumbing, and whether an accumulator is installed. There isn’t one universal pressure setting for every RV pump. Follow the specifications for your model rather than adjusting a switch based on a number from another pump.
When a faucet is closed and the system is holding pressure, the pump should generally remain off. If it starts briefly with no fixture open, water may be escaping somewhere, or there may be an issue with a valve or pressure control. That recurring sound is a useful diagnostic clue.
Two habits keep a pump healthy and make its symptoms readable. First, know which mode you are in every time you complain about water: tank or city. Almost every pump-side diagnosis starts there, because the pump is the pressure source in one mode and a bystander in the other. Second, listen to the pump deliberately once per trip. It has a normal sound and a normal rhythm in your rig; a change in that rhythm is the earliest warning you will get, weeks before a faucet goes weak. Owners who know their pump's healthy sound catch strainer clogs and small leaks in the first days, while owners who only notice the pump when something fails lose the diagnostic lead time entirely.
The pump strainer: a small part with a big job
Many RV water pumps have a small inline strainer on the inlet side. The plumbing between the fresh-water tank and the pump. It is there to catch debris before it reaches the pump. Think of it as the pump’s own sediment pre-filter: it protects a different part of the system than the external filter train does.
Because the strainer is easy to overlook, it may go unserviced for a long time. As debris accumulates in the screen, the pump can have trouble receiving water. Possible symptoms include weak flow at multiple fixtures, longer or more noticeable pump runs, sputtering, or irregular cycling. These symptoms can have other causes, too, so treat a dirty strainer as something to inspect, not a diagnosis by itself.
How to inspect and clean the strainer
Pump and strainer layouts differ, but the general process is straightforward:
- Switch off the pump. If you’re connected to city water, shut off that supply too. Follow your RV’s instructions for isolating the water system.
- Relieve pressure. Open a faucet and let the flow stop before you open any part of the plumbing.
- Find the pump inlet strainer. It is typically close to the pump, between the tank line and the pump inlet. Check your pump manual if the layout isn’t obvious.
- Open it according to its instructions. Many small strainers can be opened by hand, but don’t force a fitting or assume every design uses the same method.
- Inspect and rinse the screen. Remove visible debris and rinse the screen with clean water. Check the housing for damage or persistent buildup.
- Check the O-ring. Make sure it is clean, undamaged, and seated correctly in its groove. Replace it if it is cut, flattened, or otherwise compromised.
- Reassemble and check for leaks. Hand-tighten if the manufacturer’s instructions call for it; tools can overtighten or damage some plastic housings. Restore water pressure gradually and inspect the connection.
If cleaning the strainer doesn’t resolve weak flow, continue with other checks: the tank outlet, valves, hoses, electrical supply, and downstream restrictions. For model-specific components, see water pumps and pump accessories.
A strainer cleaning is also the moment to look at what the screen caught, because the debris tells you about the tank side of your system. Fine sediment means the tank itself is carrying particles, which is normal in any rig that fills from varied sources. Bits of hose liner or rubber mean a line is degrading somewhere upstream and worth tracing. Insects or sludge suggest the tank vent or fill cap screen needs attention. The strainer is the one component that shows you what the tank is sending forward, and reading that evidence is free with every service.
How often to service it is not a calendar question but a water question. A rig filling from clean municipal sources may go a long time between cleanings; a rig that fills from wells, lakes, or sediment-heavy campgrounds will load the screen faster. The honest method is to check it when the pump first sounds different, and to establish a routine by inspecting it at every filter change you already do. If you are already swapping cartridges on a cadence, the strainer adds two minutes to the same service stop.
What an accumulator does, and what it doesn’t
An accumulator is a small pressure vessel installed on the pressurized side of a pump. Many designs contain an air bladder or diaphragm that separates air from water. As pressure changes, the air cushion compresses or expands, helping buffer fluctuations in the water line.
In a system designed to use one, an accumulator can reduce rapid pump cycling during small draws and cushion pressure pulses. It can make water delivery feel steadier in some setups. It does not replace the pump, fix a leak, clean a clogged strainer, or guarantee that every pump needs an accumulator. Some pump designs use bypass control or other features, so check the pump manufacturer’s recommendations before adding one.
Accumulators may arrive with a pre-charge, and the correct charge and checking procedure depend on the accumulator and pump. Follow the manufacturer’s guidance. For some designs, charge checks are made with the pump off and the water side depressurized, but don’t assume that procedure or a particular pressure applies to every model.
A waterlogged accumulator, or one that has lost its air cushion, may no longer buffer pressure changes effectively. Rapid cycling can be one symptom, but it can also result from a leak, restriction, or pump-control issue. If an accumulator has water at its air valve or will not hold charge, follow its manufacturer’s service or replacement instructions rather than trying an improvised repair.
Troubleshoot by matching the symptom to the water mode
Before inspecting components, compare the system on tank water and city water if it is safe and practical to do so. Keep the same fixture open and note whether the issue appears in one mode, the other, or both.
- Problem only on tank water? Start with the pump, its inlet strainer, the tank-side plumbing, and pump controls.
- Problem only on city water? Look first at the campground supply, regulator, hose, and connections on that side.
- Problem in both modes? Look for shared restrictions, such as a filter cartridge, faucet aerator, or plumbing section used by both supplies.
The pump is not usually the pressure source when you’re connected to city water. Depending on the RV’s plumbing, a check valve helps keep city water from flowing backward through the pump. The exact arrangement varies, so consult your RV documentation when identifying the circuits.
For city-water problems, use the steps in our pressure-drop diagnostic flowchart. If you need to compare pressure at different points, see reading pressure gauges honestly.
A pump that cycles with every fixture closed
If the pump briefly runs when nobody is using water, pressure may be falling because water is leaking from the pressurized side. Check for a dripping faucet, a toilet valve that is letting water pass, or a visible leak at a fitting. Also consider a pump check valve or pressure-switch problem.
Start with the simple, visible checks. Turn off the pump, inspect accessible plumbing for moisture, and listen for toilets or faucets that may be silently passing water. Don’t open the pump head or adjust its switch unless the manufacturer’s service instructions call for it and you’re comfortable doing that work.
A pump that runs but delivers weak flow
Weak flow at several fixtures on tank mode points toward a shared restriction or supply problem. Start at the tank and work forward: confirm there is water in the tank, inspect the inlet strainer, and check accessible lines and valves for kinks, blockage, or a closed winterizing valve. Then consider the filter train and individual fixtures.
If only one faucet is weak, check that fixture’s aerator or screen before assuming the pump is failing. If the pump is noisy, sputters, or struggles to prime, an inlet-side restriction or air leak may also be worth investigating. Follow the pump manual’s troubleshooting guidance.
A pump that runs continuously
If the pump continues to run and cannot reach its shut-off condition, there may be a substantial leak, a loss of prime, or an issue with the pressure switch or pump valves. Turn the pump off if you see water escaping or the pump sounds as if it is struggling. Check for an empty tank, an open fixture, a visible leak, and any valve that may have been left open.
Don’t leave a pump running unattended to see whether it eventually stops. Some pumps have model-specific protections or dry-running capabilities, but those features are not a reason to deliberately run a pump without water. Use and winterize your pump according to its manufacturer’s instructions.
A pump-side look at pressure testing
If you carry a pressure gauge, it can earn its keep on pump mode too, with one caveat about where it reads. A gauge teed into the pressurized side downstream of the pump will show the pump’s delivered pressure while a fixture runs. What it cannot show you is the suction side: a strainer clogging or an inlet line kinking rarely appears on a downstream gauge. That is why the pump’s sound and run-length matter as much as any number: the gauge tells you what the pump is delivering, and the pump’s behavior tells you what it is dealing with. Used together, they separate a delivery problem from a supply problem without opening anything.
How filtration interacts with a pumped system
An external filter train may be connected differently depending on the RV setup. In a tank-water arrangement where the filter is plumbed before the pump, the pump must draw water through the tank-side plumbing and that filter. In other arrangements, filtration may be installed on the pump’s pressurized side or used only with city water. Check your actual plumbing path rather than assuming every RV is configured the same way.
When a filter is on the inlet side, a clogged or restrictive cartridge may make priming or water delivery harder. Keep the cartridge in good condition and use the type specified for your system. If a filter was just installed and the pump is having trouble priming, check that the housings are assembled correctly, the valves are set as intended, and the pump has been primed according to its manual. Avoid repeatedly running it without water.
When the filter is downstream of the pump, a loaded cartridge may reduce flow at fixtures even while the pump itself is operating normally. The pump and the filter can produce similar symptoms, so compare modes and inspect the components rather than replacing either one by guesswork.
One interaction is worth naming because it surprises people: a filter that performed fine on city pressure can feel restrictive on pump mode even when it is clean. City water pushes through the filter train with force to spare; a 12V pump works against its own limitation, and every bit of restriction the filter adds is flow the pump has to work harder to deliver. This does not mean pumped rigs should filter less. It means cartridge selection matters more on tank mode: a two-stage arrangement with a sediment stage ahead of the carbon stage keeps the carbon cartridge from loading early, which keeps the whole train easier for the pump to push through. That is the same logic as the external sediment pre-filter, applied inside the bay.
For compatible replacement options, browse filter cartridges and sediment cartridges. Sediment filtration can protect downstream equipment from particles, but a cartridge needs to be selected and maintained for its intended application.
A filter change for taste or odor is separate from a pump repair. Carbon can improve taste and odor without lowering TDS. TDS is a comparison tool, not a safety test, and a TDS reading cannot tell you whether a pump, cartridge, or water supply is functioning safely.
Troubleshooting table
| Symptom | Likely causes to consider | First check |
|---|---|---|
| Weak flow at multiple fixtures on tank water | Clogged inlet strainer, tank-side restriction, closed valve, loaded cartridge, or pump issue | Confirm water is in the tank and inspect the strainer and accessible valves |
| Weak flow at one fixture only | Clogged aerator or fixture screen | Remove and rinse the affected fixture’s screen if its instructions allow |
| Pump cycles when no fixture is open | Leak, toilet valve passing water, or pump check-valve or pressure-switch issue | Inspect visible plumbing and listen for a dripping fixture |
| Pump runs longer than usual | Restriction, leak, air entering the inlet, or changing demand | Check for an open fixture, visible leak, kink, and dirty strainer |
| Pump runs but water sputters | Low tank supply, air in the line, inlet restriction, or priming issue | Check tank level and inlet-side fittings; follow the manual’s priming procedure |
| Pump will not stop | Large leak, loss of prime, or pump-control or valve issue | Turn it off if it appears to be struggling; check for open outlets and visible leaks |
| Problem only on city water | Supply, regulator, hose, filter, or city-water inlet issue | Check the campground supply and regulator path |
| Problem on both city and tank water | Shared filter, plumbing section, or fixture restriction | Check shared downstream components and the affected fixture |
This table is a starting point, not a substitute for the instructions for your pump and RV. If checks point to wiring, a pressure switch, pump-head components, or another repair beyond routine cleaning, consult the manufacturer or a qualified RV technician.
Pump-bay inspection checklist
A quick visual inspection can catch small problems before they become a no-water surprise. With the pump off and the system safe to inspect, check:
- Strainer clean: Screen is free of obvious debris, and its housing is intact.
- Fittings dry: Pump inlet, outlet, and nearby connections show no signs of leaking.
- O-ring seated: Strainer seal is clean and correctly positioned.
- Accumulator mounted: If installed, it is secure and not visibly damaged.
- Wiring intact: Connections and insulation show no visible damage; don’t work on wiring unless you can do so safely.
- Pump head dry: No visible weeping or moisture around the pump head.
- Lines supported: Hoses are not kinked, pinched, or pulling on the pump fittings.
- Valves in the right position: Tank, bypass, and winterizing valves are set for the mode you’re using.
If you find moisture or a damaged connection, switch off the pump and relieve pressure before service. Electrical problems, recurring leaks, or a pump that will not operate normally may call for professional help.
Prepare the pump for cold weather
The pump is part of the RV’s water system and needs to be protected during winterization. A pump, strainer, accumulator, or nearby line can hold water even after the fresh tank has been drained. Follow the procedure for your specific RV and pump, including any drain point or winterization bypass. Don’t assume that opening one faucet has emptied every component.
If using RV antifreeze, follow the pump and RV manufacturers’ instructions for the pump and plumbing. Keep filter cartridges out of the antifreeze flow path unless their manufacturer explicitly allows otherwise. Our article on winterizing the water system covers filter-system considerations.
Start with the pump side when the symptom points there
When pressure complaints happen only on tank water, the pump and its supporting parts deserve attention alongside the filters. A clean inlet strainer, sound connections, correctly installed accumulator, and clear understanding of the pump’s cycle can help narrow down the cause.
Use the symptom, water mode, and component layout to guide your checks. Confirm what the pump manual says before changing settings or servicing internal parts. And if a simple strainer cleaning or visible leak check doesn’t resolve the issue, use the manufacturer’s troubleshooting steps or contact a qualified RV technician rather than guessing at pressure settings.
