When you shop for an RV water filter cartridge, one of the first specifications you will see is its micron rating. The number may be printed on the cartridge label, listed in a product description, or used to describe one stage in a multi-filter system.
A smaller number can sound automatically better. But a 1-micron cartridge is not necessarily the best choice for every RV, and a micron rating alone does not tell you whether a filter removes chlorine, metals, bacteria, viruses, or other dissolved contaminants.
The rating is one part of the selection process. To choose properly, you also need to understand:
- What a micron measures
- The difference between nominal and absolute ratings
- How sediment filters differ from carbon filters
- Why a 5-micron carbon block may do more than a 5-micron sediment filter
- How fine filtration affects water flow
- Why a multi-stage setup usually works better than one very fine cartridge
- Which claims must be verified on the manufacturer’s performance data
This article explains common RV water filter cartridge ratings from 50 microns down to 0.2 microns and shows how to match each stage to your water source and travel style.
What is a micron?
A micron, also called a micrometer and written as µm, is a unit of length.
One micron equals 1/1,000,000 of a meter.
That is small enough that most particles measured in microns cannot be seen individually with the naked eye. The scale becomes easier to understand when you compare micron-sized particles with familiar objects:
- Human hair is approximately 70 microns across, although hair diameter varies.
- Sand grains are often approximately 100 microns or larger, depending on the type of sand.
- A red blood cell is approximately 8 microns across.
- A Giardia cyst is approximately 5–7 microns in the comparison range commonly used for filtration discussions.
- A Cryptosporidium oocyst is approximately 4–6 microns.
- Bacteria may range from approximately 0.2–2 microns, depending on the organism.
- Viruses can range from approximately 0.004–0.1 microns, depending on the virus.
These are approximate ranges, not universal dimensions. Organisms vary by species, life stage, and measurement method. The point of the comparison is to show why a filter rated at 50 microns behaves very differently from one rated at 0.5 microns.
A micron rating generally describes the size of particles that a filter media is designed to capture. It does not automatically describe every contaminant the cartridge removes.
For example, chlorine is dissolved in water. It is not a visible particle that a sediment screen simply catches. Carbon typically improves chlorine, taste, and odor through adsorption, in which chlorine and other compounds adhere to the surface of the carbon media.
That distinction is essential: mechanical filtration and chemical adsorption are different processes.
RV water filter micron ratings at a glance
The table below provides a practical comparison of common ratings. The exact performance depends on the cartridge construction, media, rating method, flow rate, and manufacturer’s tested claims.
| Micron rating | Common role | What it may help catch | What it generally does not address by micron size alone |
|---|---|---|---|
| 50 micron | Coarse sediment screen or prefilter | Large sand, visible grit, rust flakes, and larger debris | Fine sediment, dissolved chemicals, bacteria, viruses |
| 30 micron | Coarse-to-medium sediment stage | Smaller sand, grit, and suspended particles | Dissolved chlorine, most fine microbes, viruses |
| 20 micron | Medium sediment filtration | Many suspended sediment particles and visible cloudiness | Dissolved contaminants and very small organisms |
| 10 micron | Fine sediment prefilter | Fine sand, silt, and some smaller suspended particles | Chlorine unless carbon media is present; viruses |
| 5 micron | Common sediment or carbon-block rating | Fine sediment; carbon blocks may also improve taste and chlorine | Microbiological safety unless specifically tested and claimed |
| 1 micron | Fine mechanical filtration | Very small suspended particles and some larger microorganisms, depending on rating type | Viruses; dissolved contaminants without appropriate media |
| 0.5 micron | Fine carbon block or cyst-reduction stage | Fine particles and, when specifically tested, protozoan cysts such as Giardia and Cryptosporidium | Viruses by micron rating alone |
| 0.2 micron | Very fine filtration or microbiological-claim stage | Very small particles and some bacteria when specifically tested | Viruses unless the product has a separate validated virus claim |
Use this table as a starting point rather than a guarantee. A “5-micron filter” could be a sediment cartridge, a carbon block, or another type of media. Those cartridges will not perform identically.
What does a 50-micron filter remove?
A 50-micron RV water filter cartridge is generally used as a coarse prefilter. It is designed to reduce larger particles before water reaches finer downstream cartridges.
It may help catch:
- Large sand grains
- Visible grit
- Rust flakes
- Scale fragments
- Pipe debris
- Larger pieces of sediment
- Particles stirred up in campground plumbing
A 50-micron stage is useful when the incoming water looks cloudy or contains visible debris. It can also protect a finer cartridge from loading too quickly.
The trade-off is that many smaller particles pass through. A 50-micron filter is not intended to polish water to a highly clear appearance by itself, and it does not remove dissolved chlorine or address contaminants that are smaller than its mechanical rating.
In a multi-stage RV system, a 50-micron cartridge can be a sensible first stage when the source water is particularly dirty. It is usually not the final stage selected for drinking-water taste or fine filtration.
What does a 30-micron filter remove?
A 30-micron cartridge provides more sediment control than a 50-micron stage while still allowing relatively open water flow compared with finer cartridges.
It may reduce:
- Smaller sand particles
- Grit
- Rust and pipe scale
- Suspended debris
- Some visible sediment
This rating is often useful when you want a prefilter that protects a finer carbon cartridge without immediately choosing an extremely restrictive first stage.
A 30-micron sediment cartridge is still primarily a particle filter. It should not be selected on the assumption that it removes chlorine, bacteria, or viruses. Those claims require the right media and verified performance testing.
What does a 20-micron filter remove?
A 20-micron filter sits in the medium-sediment range. It can capture smaller suspended particles than a 30- or 50-micron stage and may be appropriate for water that contains noticeable but not extreme sediment.
It may help reduce:
- Fine grit
- Sand
- Silt
- Rust particles
- Suspended scale
- Other particles larger than the media’s effective capture range
A 20-micron cartridge can be used as a standalone sediment stage or as the first stage before a finer cartridge. Whether it is the best option depends on how much sediment enters your RV, how often you travel, and how much flow your system needs.
If a 20-micron filter clogs quickly, that is useful information. It may indicate that your water source needs a coarser prefilter ahead of it.
What does a 10-micron filter remove?
A 10-micron RV water filter cartridge is commonly used for finer sediment reduction. It can help remove particles that pass through coarser prefilters, including fine sand, silt, and some rust particles.
A 10-micron sediment cartridge may be a good fit when:
- Your water is visibly cloudy
- You see fine sediment in a clear glass
- A coarser filter leaves particles behind
- You need to protect a carbon block from premature loading
- Your campground water has recurring sediment issues
However, a 10-micron rating does not mean the cartridge removes all particles 10 microns and larger. The terms nominal and absolute matter, and cartridge depth, flow rate, and particle shape can affect real-world capture.
A 10-micron carbon cartridge also behaves differently from a 10-micron sediment cartridge because the carbon adds adsorption capacity. The number alone does not describe the complete treatment process.
What does a 5-micron filter remove?
The 5-micron rating is one of the most common ratings associated with residential and RV filtration.
A 5-micron cartridge may be used as:
- A fine sediment filter
- A carbon block filter
- A polishing stage after coarser sediment filtration
- A prefilter for an even finer drinking-water stage
A 5-micron sediment cartridge is designed primarily to reduce fine suspended particles. A 5-micron carbon block may also reduce chlorine, taste, and odor through adsorption.
This is one reason you should not compare cartridges only by their micron number. Two cartridges can both say “5 micron” while using very different media:
- A sediment cartridge relies mainly on physical capture.
- A carbon block combines physical filtration with adsorption.
- A specialty cartridge may use additional media for a specific contaminant claim.
A 5-micron cartridge should not automatically be described as a microbiological barrier. If a product is tested for cyst, bacteria, or virus reduction, look for the specific claim and test information rather than inferring performance from “5 micron.”
What does a 1-micron filter remove?
A 1-micron filter is a fine filtration stage. It can reduce very small suspended particles and may help capture some microorganisms when the cartridge is appropriately rated and tested.
A 1-micron cartridge may be used for:
- Fine sediment
- Small suspended particles
- Turbidity reduction
- Protection of downstream drinking-water stages
- Specific microorganism-reduction claims, if documented by the manufacturer
A key question is whether the rating is nominal or absolute.
A 1-micron nominal cartridge and a 1-micron absolute cartridge should not be treated as equivalent. A nominal rating describes approximate or average retention, while an absolute rating is intended to describe a more defined level of particle capture under a stated test method.
The rating also does not tell you whether the cartridge removes chlorine or dissolved contaminants. If the cartridge does not contain carbon or another appropriate treatment medium, its 1-micron number mainly describes mechanical filtration.
What does a 0.5-micron filter remove?
A 0.5-micron RV water filter cartridge is commonly associated with fine carbon blocks and cartridges marketed for cyst reduction.
At this size, the cartridge may provide:
- Fine sediment reduction
- Improved clarity
- Carbon adsorption of chlorine, taste, and odor when carbon media is present
- Reduction of Giardia and Cryptosporidium cysts when the product has an explicit tested claim
- Reduction of certain bacteria when the cartridge is tested and labeled for that purpose
The important wording is “when the product has an explicit tested claim.”
A 0.5-micron rating alone does not guarantee that every cartridge removes protozoan cysts. Performance depends on the construction and rating method. Some products may be 0.5 micron nominal, while others may have a separately documented cyst-reduction claim.
When evaluating a 0.5-micron cartridge, look for language such as:
- Cyst reduction
- Giardia reduction
- Cryptosporidium reduction
- Tested percentage reduction
- NSF/ANSI certification or another applicable third-party certification
- A manufacturer performance data sheet
A properly tested 0.5-micron stage may be an effective part of an RV water filtration system, but it is not automatically a virus filter.
What does a 0.2-micron filter remove?
A 0.2-micron filter is a very fine filtration stage. It may be used in systems making microbiological claims, but the claim must be evaluated separately from the micron rating.
A 0.2-micron cartridge may reduce:
- Very fine suspended particles
- Some bacteria, depending on the organism and cartridge design
- Certain microbiological contaminants when the product is tested for them
- Fine particles that pass through a coarser carbon or sediment stage
Viruses are generally much smaller than bacteria. Many viruses fall within an approximate range of 0.004–0.1 microns, so a 0.2-micron rating should not be interpreted as reliable virus removal.
Some products use additional technologies, specialized membranes, adsorption media, or validated microbiological performance claims. Those features are separate from the number printed on the cartridge.
If virus protection is an important requirement, review the actual product claim and treatment technology. Do not select a filter solely because “0.2 micron” sounds small enough.
Nominal vs. absolute micron ratings
The difference between nominal and absolute ratings is one of the most important details in filter selection.
Nominal ratings
A nominal rating is an approximate or average rating. It indicates that the media retains a substantial portion of particles at or above the stated size under a particular test method.
Because the pores or pathways in a nominal filter are not perfectly uniform, some particles larger than the listed rating may pass through. The amount of retention can depend on:
- The filter’s depth and construction
- Particle shape
- Water pressure
- Flow rate
- The concentration of sediment
- The test method used by the manufacturer
Nominal filters are often useful for sediment control and general water-quality improvement. They are not automatically suitable as a primary microbiological barrier.
Absolute ratings
An absolute rating is intended to represent a more tightly controlled level of particle retention under a specified test method. It generally indicates that particles larger than the stated size are much less likely to pass through than with a nominally rated cartridge.
However, “absolute” still needs context. Different manufacturers and industries may use different testing methods or definitions. A strong product evaluation includes the actual test standard, contaminant claim, operating conditions, and certification, not just the word “absolute.”
For health-related filtration claims, a verified contaminant-reduction claim is more useful than a micron number by itself.
What a micron rating does not tell you
A micron number is helpful, but it is not a complete description of a filter. It does not tell you all of the following.
It does not identify the filter media
A sediment cartridge and a carbon block can have the same nominal micron rating while performing different jobs.
Sediment media is designed to capture suspended particles. Carbon media can adsorb chlorine, taste, odor, and certain chemicals while also providing some mechanical filtration.
It does not prove contaminant removal
A filter can be rated at 1 micron without having a claim for Giardia, Cryptosporidium, bacteria, or any other specific contaminant.
To make a contaminant-reduction claim, the cartridge must be tested under defined conditions. Look for the manufacturer’s performance data and applicable certification.
It does not mean the filter removes dissolved substances
Salt, hardness minerals, many metals, and other dissolved substances are not simply particles that a standard sediment screen catches.
A carbon cartridge may address some compounds through adsorption. A water softener uses ion exchange to address hardness. Reverse osmosis uses a membrane process. Each technology has a different purpose.
It does not predict filter life
A smaller micron rating may load faster when the source water contains substantial sediment. But filter life also depends on:
- Total gallons treated
- Incoming water quality
- Flow rate
- Pressure
- Frequency of use
- Cartridge size
- Media capacity
- Whether a prefilter protects the cartridge
A larger cartridge with a suitable prefilter may last longer than a smaller cartridge used alone.
It does not guarantee drinking-water safety
A micron rating should never be treated as a complete drinking-water safety assessment. Water quality also depends on the source, plumbing, storage tank, hoses, sanitation practices, and the specific contaminants present.
The CDC explains that home water treatment systems should be selected according to the contaminants of concern and the treatment claims that have been evaluated. Its guidance on choosing home water filters is a useful reference when you need to compare certification and contaminant claims: CDC information on choosing home water filters.
Why carbon filtration is not the same as sieving
It is common to hear that a carbon filter “catches” chlorine. That description is not technically accurate.
Carbon generally reduces chlorine through adsorption, not simple sieving. The compounds interact with the carbon surface as water passes through the media.
Carbon can also improve:
- Taste
- Odor
- Chlorine-related flavor
- Some organic compounds, depending on the carbon and claim
- Certain other contaminants when the cartridge is designed and tested for them
The micron rating still matters because carbon blocks also provide physical filtration. But the rating does not tell you the carbon’s adsorption capacity.
For example, a 5-micron carbon block and a 5-micron sediment cartridge may both reduce particles in a similar size range, but only the carbon block is designed to provide carbon adsorption. Conversely, a carbon cartridge with a fine micron rating should not be assumed to remove every microorganism unless that performance is documented.

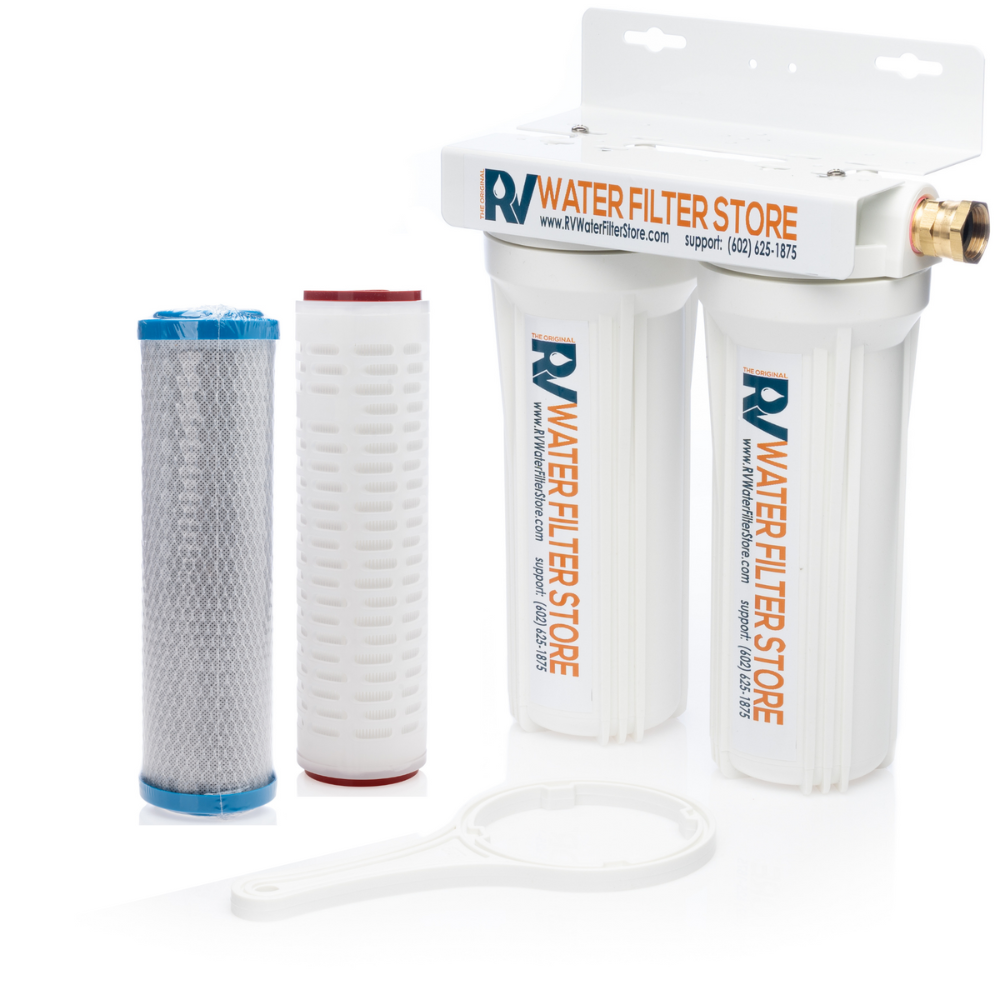

How to choose ratings for a multi-stage RV setup
A multi-stage setup works by assigning different jobs to different cartridges. The first stage protects the stages that follow it, while later stages provide finer filtration or treatment.
A common arrangement looks like this:
- Coarse sediment stage
- Finer sediment or specialty stage
- Carbon block or other treatment stage
- Optional fine drinking-water stage
Stage one: start with coarse sediment
Use a 50-, 30-, or 20-micron cartridge when you need to reduce larger debris before it reaches finer media.
This stage is particularly useful when:
- You frequently use older campground hookups
- The water appears cloudy
- You see grit in the hose or filter housing
- Your finer cartridges clog rapidly
- You travel between locations with inconsistent water quality
The correct starting point depends on the amount and size of sediment. A coarser first stage generally offers less flow resistance and more capacity for large debris.
Stage two: remove finer sediment
A 20-, 10-, or 5-micron stage can reduce smaller particles that pass through the first cartridge.
This stage helps protect carbon media. Sediment can fill the spaces in a carbon block, reducing flow and shortening useful life. A dedicated sediment stage allows the carbon cartridge to focus more of its capacity on adsorption.
Stage three: add carbon treatment
A carbon block is often used after sediment filtration to improve taste and reduce chlorine and odors.
The appropriate carbon cartridge depends on:
- Incoming water quality
- Desired flow
- Cartridge size
- Carbon capacity
- The contaminants listed in the performance data
- Whether the system is treating all RV water or only drinking water
Carbon is especially useful when campground water is disinfected with chlorine and the resulting taste is noticeable in beverages or cooking water.
Stage four: use a fine stage when the claim supports it
A 1-, 0.5-, or 0.2-micron stage may be appropriate when the cartridge has a specific reason for being there, such as fine sediment polishing, cyst reduction, or a documented microbiological claim.
Do not add the finest cartridge available simply because the number is smaller. The final stage should match the water condition and the system’s intended use.
The flow-rate trade-off
As filtration becomes finer, resistance to water flow can increase. This is not an absolute rule for every cartridge, because media design and cartridge size matter, but it is a practical consideration.
A fine cartridge may:
- Reduce flow more than a coarse cartridge
- Load more quickly in dirty water
- Require more frequent replacement
- Cause a noticeable pressure drop when nearing capacity
- Work better as a later stage than as the first stage
RV owners need enough flow for showers, faucets, toilet operation, appliances, and tank filling. A cartridge that is technically very fine may not be comfortable if it causes the entire RV system to feel slow.
A coarse prefilter can protect the finer downstream cartridge and help maintain more consistent performance. The best balance depends on your water source and how much water you use.
For occasional weekend camping, a simple in-line cartridge may be convenient. For full-time travel or locations with inconsistent water, a larger multi-stage system may provide more flexibility. You can compare available configurations in the RV Water Filtration Systems collection and choose based on your source water, desired flow, and maintenance preferences.
Common micron-rating myths
Myth 1: Lower is always better
A lower number can provide finer mechanical filtration, but it may also increase flow resistance and load more quickly.
A 0.2-micron cartridge is not automatically better for every application than a 5-micron carbon block. If the water contains large amounts of sediment, the very fine cartridge may become restricted quickly.
The better question is: What does each stage need to accomplish?
Myth 2: A 0.5-micron filter removes viruses
A 0.5-micron rating alone does not mean virus removal. Many viruses are smaller than 0.1 microns, and a standard microfilter is not automatically a virus barrier.
Virus-related claims require a validated treatment method and specific product testing. In some water-treatment situations, filtration is combined with disinfection or another treatment barrier. The CDC discusses the limitations and complementary roles of filtration and disinfection in its information on home water treatment systems.
Myth 3: A 1-micron filter makes any water safe to drink
A 1-micron filter may help reduce certain particles or microorganisms, but it does not address every possible contaminant. It also does not correct a contaminated holding tank, dirty hose, unsanitary faucet, or unsafe source.
Use the manufacturer’s specific performance claims and follow appropriate water safety practices.
Myth 4: Micron ratings are interchangeable between brands
They are not always directly interchangeable. One manufacturer’s nominal rating may not have the same tested performance as another manufacturer’s absolute rating.
Compare:
- Nominal or absolute designation
- Filter media
- Cartridge size
- Flow conditions
- Capacity
- Contaminant claims
- Testing or certification
- Replacement schedule
Myth 5: Carbon only filters chemicals
Carbon can also provide physical filtration, especially in a tightly constructed carbon block. However, its most recognizable function is adsorption of chlorine, taste, odor, and certain chemical compounds.
Do not confuse a carbon filter’s adsorption performance with a general guarantee of microbiological removal.
Choosing an RV water filter cartridge for your travel style
Your travel pattern can help determine how complex your filtration setup needs to be.
Weekend campers
A portable or in-line filter may be practical when you use treated campground water occasionally and want a convenient way to improve taste and reduce visible sediment.
Review the cartridge’s capacity and storage instructions between trips. A filter that remains wet during long-term storage may require special handling according to the manufacturer’s directions.
You can browse compact options in the In-Line Filters collection.
Full-time RVers
Full-time travelers typically encounter a wider range of source-water conditions. A multi-stage system gives you more control over sediment and carbon treatment.
A common approach is:
- Coarse sediment first
- Finer sediment second
- Carbon block after sediment
- A documented fine or specialty stage if needed
Keep replacement cartridges available so maintenance does not depend on finding the correct size at the next campground.
The Replacement Filter Cartridges collection includes replacement options for ongoing filter maintenance.
Boondockers and travelers using uncertain sources
If the source is not a treated municipal supply, do not select a cartridge based on micron rating alone. You need to consider the specific risks in the water and whether additional treatment, testing, or disinfection is appropriate.
Filtration may reduce particles and certain organisms, but it may not address dissolved chemicals, salts, heavy metals, or viruses. A water test and a treatment plan matched to the result are more reliable than choosing the smallest number on a filter label.
How to read a cartridge label
Before purchasing an RV water filter cartridge, look for these details:
- Micron rating: Is it 50, 20, 5, 0.5, or another size?
- Rating type: Is the rating nominal or absolute?
- Media type: Is it sediment, carbon block, granular carbon, specialty media, or a membrane?
- Flow information: What flow rate was used for the published performance?
- Capacity: How many gallons or how much service life is listed?
- Contaminant claims: Does the manufacturer name chlorine, cysts, bacteria, lead, iron, or another contaminant?
- Testing: Is the claim supported by a recognized testing method or certification?
- Physical compatibility: Does the cartridge fit your housing and connection system?
- Replacement schedule: Is replacement based on time, gallons, pressure drop, taste, or another indicator?
If the label only says “5 micron,” you know something about particle filtration but not the entire treatment capability.
Practical recommendations
For many RV water systems, the most useful approach is not to search for one perfect micron number. Instead, build filtration around the water condition:
- Use 50–30 microns when larger debris is the main concern.
- Use 20–10 microns for medium or fine sediment reduction.
- Use 5 microns as a common sediment or carbon-block stage, depending on the media.
- Use 1 micron when you need finer particle filtration and the cartridge’s rating and claims support the application.
- Consider 0.5 micron when you want fine carbon filtration or a documented cyst-reduction claim.
- Consider 0.2 micron only when the product has a clear reason and validated claim for the intended use.
- Use carbon for chlorine, taste, and odor through adsorption, not because the micron number alone removes dissolved chemicals.
- Place coarse filtration before fine filtration to protect downstream cartridges and manage flow.
- Replace cartridges when they reach their stated capacity, become restricted, or show signs of reduced performance.
- Treat micron ratings as one specification among several, not as a complete safety guarantee.
Final takeaway
The micron rating on an RV water filter cartridge tells you how finely the media is designed to filter particles, but the number does not tell the whole story.
A 50-micron cartridge is useful for larger sediment. A 10- or 5-micron cartridge can provide finer sediment control. A 0.5-micron carbon block may offer fine filtration plus chlorine and taste reduction, and it may have a cyst-reduction claim when separately tested. A 0.2-micron cartridge may be used for certain microbiological claims, but it should not be assumed to remove viruses.
For the best results, match each stage to a specific job:
- Coarse sediment first
- Finer sediment next
- Carbon for adsorption and taste improvement
- Specialized fine filtration only when the tested claim supports it
That staged approach helps balance particle reduction, water taste, cartridge life, and usable flow throughout your RV.
Frequently asked questions
Is a smaller micron rating better for an RV water filter?
Not necessarily. A smaller rating can capture finer particles, but it may also restrict flow or clog more quickly. The best rating depends on incoming water quality, desired flow, cartridge media, and the job assigned to that stage.
What micron rating removes Giardia and Cryptosporidium?
Giardia cysts and Cryptosporidium oocysts are larger than bacteria and viruses. A cartridge with an appropriate fine rating may reduce them, but you should look for an explicit, tested cyst-reduction claim rather than relying on the micron number alone. An absolute rating and applicable certification can provide additional confidence.
Does a 5-micron carbon filter remove chlorine?
Carbon media is designed to reduce chlorine primarily through adsorption. A 5-micron carbon block may also capture fine particles, but its chlorine performance depends on the carbon type, contact time, flow rate, capacity, and manufacturer’s tested claim.
Does a 0.5-micron filter remove viruses?
A 0.5-micron rating alone does not establish virus removal. Viruses can be smaller than the pore size of many microfilters. Check for a specific, validated virus-reduction claim and consider whether additional treatment is needed for the source water.
Should the finest filter go first?
Usually, no. A coarse sediment cartridge is commonly placed first to capture larger debris and help protect finer downstream stages. Putting a very fine cartridge first can cause it to load quickly when the source contains substantial sediment.
Can I use one micron rating for the entire RV?
You can, but a staged system may provide better overall performance. Different stages can handle large sediment, fine sediment, carbon adsorption, and specialty treatment separately. This can help manage flow and cartridge life.
How often should I replace an RV water filter cartridge?
Follow the manufacturer’s capacity and replacement guidance. Replace the cartridge sooner if flow drops, taste or odor returns, the cartridge reaches its rated capacity, or the water source is unusually dirty. Cartridge life varies significantly with source-water quality and usage.
