Choosing an RV water filter cartridge is not only about selecting sediment, carbon, or specialty media. The housing that holds the cartridge matters just as much. Its diameter and length determine how much media is available, how much water can pass through the system, how quickly pressure drop may develop, and how often you need to service the filter.
For many RV owners, the most familiar option is a standard 2.5-inch by 10-inch canister. It is compact, widely available, and practical for many travel trailers, fifth wheels, motorhomes, and portable filtration setups. But it is not the only option. Larger 2.5-inch by 20-inch housings, 4.5-inch jumbo housings, and compact inline cartridges all solve different problems.
The right choice depends on your RV layout, water conditions, travel habits, desired flow, maintenance preferences, and available storage or mounting space. A compact filter may be perfectly adequate for occasional drinking-water use, while a full-time RVer with several simultaneous fixtures may benefit from a larger whole-RV system.
This guide explains the common housing sizes, how to identify the system you already own, what changes as housing size increases, and how to match a housing to your travel style.
Why housing size matters more than many RVers realize
A filter cartridge can only hold as much filtration media as its physical design allows. A longer or wider cartridge generally provides more room for sediment capacity, carbon, specialty media, or a combination of media types. That extra media volume can help the cartridge process more water before it becomes restricted or reaches contaminant breakthrough.
However, housing size is not a guarantee of a particular service life. The actual life of an RV water filter cartridge depends on several factors, including:
- The type of media inside the cartridge
- The cartridge’s micron rating
- Sediment concentration in the source water
- Chlorine, taste, odor, iron, sulfur, or other target contaminants
- Water flow rate
- Total gallons processed
- Whether another filter is installed upstream
- How much pressure drop the cartridge develops as it loads
A larger housing usually gives you more physical capacity to work with, but it does not turn every cartridge into a high-capacity cartridge. A jumbo sediment cartridge and a jumbo carbon cartridge may have different performance characteristics. Always use the cartridge manufacturer’s specifications as the final reference for contaminant reduction and replacement timing.
Housing size also affects daily convenience. A 10-inch system may be easy to store in a compartment and quick to service. A jumbo system can reduce change frequency, but it occupies more space and becomes heavier when full of water. The best housing is the one that provides appropriate filtration without creating an installation or maintenance problem.

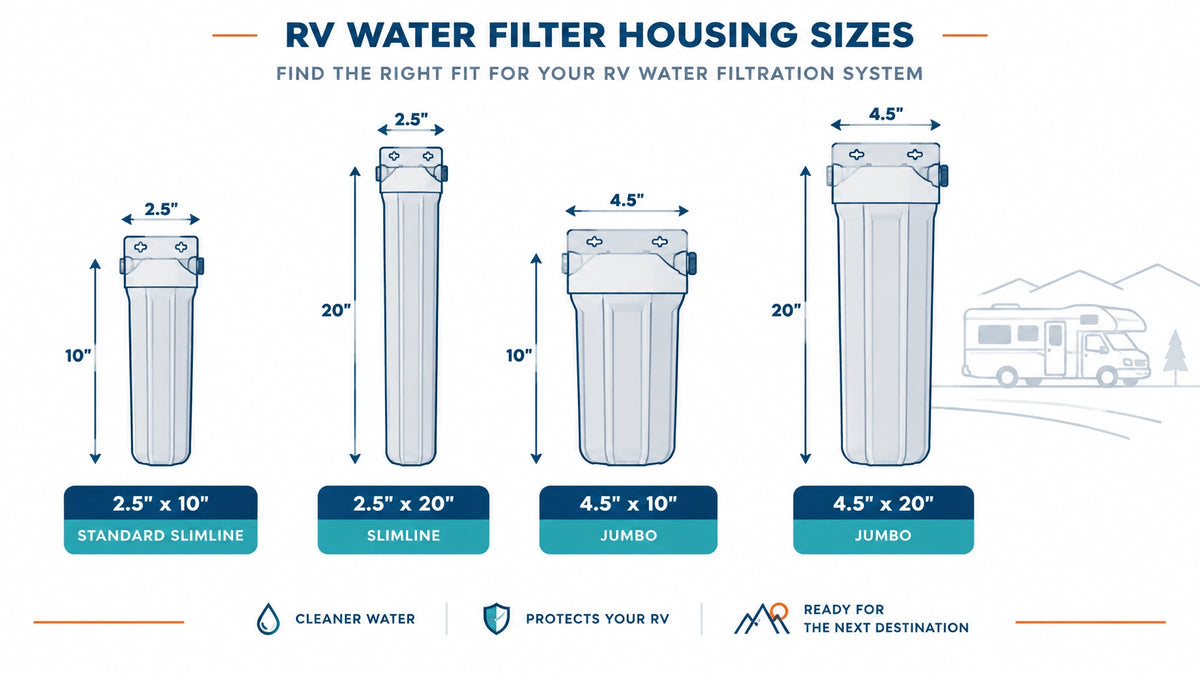

The common RV water filter housing sizes
Most RV filtration equipment falls into four general size categories:
- 2.5-inch by 10-inch standard slimline
- 2.5-inch by 20-inch slimline
- 4.5-inch by 10-inch jumbo
- 4.5-inch by 20-inch jumbo
Compact inline cartridges are another important category. They do not always use the same replaceable-cartridge format as canister systems and may have brand-specific fittings or twist-on connections.
The dimensions are nominal. The outside diameter, usable cartridge length, sump dimensions, and internal connection details can vary between manufacturers. Two housings described as “10-inch standard” may accept the same general cartridge format but have different head fittings, brackets, relief buttons, or sump designs.
Size comparison table
| Housing type | Approximate nominal size | Main advantage | Main trade-off | Common RV use |
|---|---|---|---|---|
| Standard slimline | 2.5" × 10" | Compact, affordable, widely available cartridges | Less media volume and more frequent servicing than larger options | Portable systems, small RVs, drinking-water or whole-RV filtration |
| Long slimline | 2.5" × 20" | More cartridge length without the full jumbo diameter | Still needs vertical clearance; cartridge availability may be narrower | Higher-use RVs with limited width but more height |
| Jumbo, 10-inch | 4.5" × 10" | Larger cross-section, more media volume, generally lower restriction potential | Requires more width, stronger mounting, and more service clearance | Whole-RV filtration, larger trailers, coaches, high-sediment sources |
| Jumbo, 20-inch | 4.5" × 20" | The greatest common cartridge volume and flow potential | Largest footprint, heavier when full, more demanding installation | Full-time use, large coaches, high water demand, challenging water conditions |
| Compact inline | Varies by cartridge | Lightweight, simple, and easy to connect | Limited compatibility and less flexibility in media or stages | Short trips, drinking-water lines, quick hose connections, tight spaces |
2.5-inch by 10-inch standard slimline housings
The 2.5-inch by 10-inch housing is one of the most common formats for RV filtration. The cartridge is relatively narrow and short, so the complete system can fit into a storage compartment or portable filter box without requiring much room.
A standard slimline housing can be a sensible choice when:
- You travel intermittently
- Your RV has modest water demand
- You need a portable or external filtration system
- Storage space is limited
- Replacement cartridges are easy to find locally or online
- You are filtering drinking water or a limited number of fixtures
- You prefer lower upfront and replacement costs
The main compromise is media volume. Compared with a longer or wider housing, a 2.5-inch by 10-inch cartridge has less space for sediment or adsorption media. If the source water is visibly dirty, the cartridge may load quickly. If you use a fine sediment cartridge, pressure drop may become noticeable sooner than it would with a larger cartridge.
A dual-canister 10-inch system can provide useful separation of jobs. For example, a sediment cartridge can protect a downstream carbon cartridge. That arrangement may be more effective than asking one cartridge to handle every contaminant at once.
2.5-inch by 20-inch slimline housings
The 2.5-inch by 20-inch format keeps the narrower diameter but doubles the nominal cartridge length compared with a 10-inch slimline format. It can provide more media volume without requiring the width of a jumbo housing.
This format may make sense when your installation has:
- More vertical space than horizontal space
- A need for longer cartridge service life
- Moderate-to-high usage
- A preference for slim equipment
- A compatible head and replacement-cartridge supply
The longer sump must be fully removable, so measure the clearance below the housing, not just the installed height. A 20-inch canister may fit while installed but still be impossible to service if a cabinet floor, frame member, hose, or storage wall blocks the removal path.
Availability is another consideration. The standard 2.5-inch by 10-inch size is widely used, while some 2.5-inch by 20-inch cartridges may be less common in RV-specific product lines. Confirm replacement availability before choosing this format.
4.5-inch by 10-inch jumbo housings
A 4.5-inch by 10-inch housing is often called a jumbo, Big Blue-style, or large-format housing. Its larger diameter creates a substantially greater cross-sectional area than a 2.5-inch housing of the same length.
That larger cross-section can provide:
- More room for filtration media
- Greater potential flow capacity
- Lower pressure drop at a comparable flow, when the cartridge and fittings are also designed for that flow
- Longer service intervals in some applications
- More practical whole-RV filtration for high-use travelers
A 4.5-inch by 10-inch housing is not simply a standard housing with a larger outside shell. It normally requires a jumbo cartridge designed for the larger diameter. A slimline cartridge should not be used in a jumbo sump unless the housing manufacturer specifically provides an approved adapter and cartridge arrangement.
Jumbo systems are a good option when a standard filter is clogging too quickly, when multiple fixtures are used at the same time, or when you want to reduce the frequency of cartridge replacement. They are also useful when source water contains enough sediment to load a narrow cartridge quickly.
The trade-offs are practical. A jumbo canister requires more width, a sturdy bracket, more room for the housing wrench, and enough space to drop or swing the sump out during replacement. If it is installed outside the RV, the system also needs protection from physical damage and unnecessary strain on the hose connections.
4.5-inch by 20-inch jumbo housings
The 4.5-inch by 20-inch jumbo housing combines the larger diameter with the longer cartridge length. It offers the most cartridge volume among the common housing formats discussed here.
This size may be appropriate for:
- Full-time RVers
- Large Class A coaches
- Bus conversions and park-model installations
- Households with higher water use
- Systems processing water with substantial sediment
- Installations where longer service intervals are more important than compact storage
A 4.5-inch by 20-inch system requires careful planning. The sump is large even before it is filled with water, and a full housing is significantly heavier than an empty one. The mounting surface and bracket must support the system without transferring excessive force to the water inlet, outlet, hose, or RV plumbing.
For many RV owners, a 4.5-inch by 10-inch jumbo system is a more practical compromise than immediately moving to a 4.5-inch by 20-inch system. The best choice depends on available space, flow requirements, cartridge change frequency, and the quality of the incoming water.
Compact and inline cartridges
Compact inline filters use a sealed cartridge or a twist-on format rather than a removable sump and replaceable insert. They are often chosen for simplicity.
A compact inline cartridge can be useful when:
- You need a lightweight setup
- You have limited storage space
- You want filtration at a single hose or appliance
- You travel for short periods
- You do not want to carry a housing wrench
- You need a quick connection between a hose and an RV water inlet
The main limitation is flexibility. A sealed inline cartridge may not allow you to select separate sediment, carbon, and specialty stages. You also need to replace the entire inline unit rather than opening a sump and changing only the internal cartridge.
The term “inline” does not describe one universal size. Different inline filters can use different connection types, flow paths, media, and replacement schedules. Before buying a replacement, compare the fittings, direction-of-flow arrow, cartridge length, and product specifications.
RV Water Filter Store’s in-line filter collection includes compact options intended for simple hose-connected filtration. These can be a practical alternative when a full canister system will not fit or when your filtration needs are limited to a single connection point.
How to identify the housing you already have
Before ordering a replacement RV water filter cartridge, identify the housing rather than relying only on the appearance of the old filter. A cartridge that looks close may still be too long, too wide, or incompatible with the center opening and end seals.
1. Measure the sump outside diameter
The sump is the removable lower portion of the housing. Measure across the outside of the sump at its widest point.
Do not measure only the internal cartridge diameter. Do not assume that a housing labeled “10-inch” has a 10-inch outside dimension. The 10-inch designation generally refers to the nominal cartridge length, not the complete housing.
As a rough identification step:
- A narrow sump is commonly associated with a 2.5-inch slimline cartridge
- A much wider sump is commonly associated with a 4.5-inch jumbo cartridge
Use the exact product specifications when ordering. Nominal sizing is helpful for narrowing the choices, but it is not a substitute for checking compatibility.
2. Measure the cartridge length
Remove the cartridge and measure it from end to end. If the cartridge has caps, measure the complete cartridge assembly in the same way the manufacturer describes the product.
A nominal 10-inch cartridge may not measure exactly 10 inches. Likewise, a 20-inch cartridge may have slightly different actual dimensions depending on its end caps, gasket configuration, and media construction.
Also note the cartridge’s outside diameter and the size of the center opening. Some cartridges use flat end seals, while others use molded ends, gaskets, or a specific post-and-button arrangement.
3. Inspect the housing label
Look for markings on the sump, head, bracket, or cartridge label. Useful information may include:
- 10-inch or 20-inch designation
- Slimline or jumbo description
- Maximum working pressure
- Maximum water temperature
- Flow direction
- Cartridge format
- Manufacturer or model number
- Inlet and outlet connection size
A label may identify the housing family even when the original product paperwork is unavailable.
4. Check the head and external fittings
Inspect the top head for the connection pattern. The head may use garden-hose fittings, NPT ports, PEX connections, quick connects, or another fitting arrangement.
The external thread or fitting size tells you how the housing connects to the RV water system. It does not always tell you what cartridge fits inside. A 2.5-inch and a 4.5-inch housing can potentially use similar external hose connections while accepting completely different cartridges.
If you are replacing the entire housing, compare:
- Inlet and outlet locations
- Port size
- Thread type
- Mounting-hole pattern
- Head-to-sump interface
- Pressure-relief button location
- Required wrench or service tool
5. Photograph the system before disassembly
Take a photo of the entire installation and close-ups of the label, fittings, cartridge, and bracket. This helps you remember the flow direction and makes it easier to compare replacement components.
Measure-your-system checklist
Use this checklist before ordering a cartridge or replacing a housing:
- Turn off the water supply.
- Open a faucet to relieve pressure.
- Photograph the installed system.
- Identify the inlet and outlet.
- Read every label on the housing and cartridge.
- Measure the sump’s outside diameter.
- Measure the cartridge length.
- Measure the cartridge outside diameter.
- Check the center opening and end-seal style.
- Inspect the head’s fitting and thread pattern.
- Record whether the system uses garden-hose fittings, NPT, PEX, or quick connects.
- Confirm whether the cartridge is slimline, jumbo, or inline.
- Check the manufacturer’s pressure and temperature limits.
- Confirm that the replacement cartridge is intended for the housing.
- Leave room below the sump for complete removal.
- Leave room around the housing for a wrench and hose movement.
Housing diameter, flow rate, and pressure drop
A wider housing generally offers more cross-sectional area for water to move through the cartridge. At a comparable flow rate, that can reduce restriction compared with a narrower housing. This is one reason 4.5-inch jumbo systems are often selected for whole-RV or higher-flow applications.
The comparison is not automatic, though. Pressure drop depends on the entire filtration assembly, including:
- Cartridge media
- Micron rating
- Cartridge surface area
- Water temperature
- Flow rate
- Number of stages
- Fittings and hose diameter
- Condition of the cartridge
- Amount of sediment already captured
A fine sediment cartridge may restrict more than a coarser cartridge in the same housing. A dense carbon block may have different flow characteristics from a granular carbon cartridge. As the cartridge loads, pressure drop can increase even if the housing itself is large.
The 4.5-inch diameter gives a cartridge designer more space, but the cartridge still needs to be matched to the intended flow. Do not select a high-flow housing and assume that any replacement cartridge will provide high flow.
If you notice low pressure, check the system in order:
- Confirm the campground or source pressure.
- Check the RV pressure regulator.
- Inspect the hose for kinks or crushed sections.
- Verify that the filter is installed in the correct direction.
- Check whether the cartridge is clogged.
- Confirm that fittings are not undersized or obstructed.
- Compare the cartridge’s rated flow and pressure-drop information.
A pressure regulator remains important even when using a larger housing. The larger filter does not protect the RV plumbing from excessive source pressure.
How many filtration stages make sense?
Housing size and stage count solve different problems.
Single-stage filtration
A single housing is simple and compact. It may be suitable when you have one primary concern, such as sediment or taste and odor.
Examples include:
- Sediment filtration for visibly cloudy water
- Carbon filtration for chlorine, taste, and odor improvement
- A specialty cartridge selected for a specific water concern
A single stage also has fewer seals and connections to inspect.
Dual-stage filtration
A dual system is common for whole-RV filtration. A sediment cartridge is typically installed first to capture particles and help protect the downstream cartridge. A carbon cartridge can then address taste, odor, and chlorine-related concerns when its specifications support those reductions.
The first-stage cartridge should generally be the one designed to handle the heavier sediment load. If the first cartridge is too fine for the water conditions, it may become the main restriction in the system.
Triple-stage filtration
A triple system may make sense when you have distinct water-quality concerns that require different media. For example, a system may use sediment filtration, carbon filtration, and a specialty cartridge.
More stages are not automatically better. Every additional cartridge adds:
- Another pressure-drop point
- Another housing to drain
- Another cartridge to replace
- More mounting space
- More connections that must remain leak-free
Use a triple system when the third stage has a clear purpose. If your primary problem is rapid sediment loading, moving from a 10-inch slimline housing to a larger jumbo sediment stage may be more useful than simply adding another small stage.
When a larger housing may be more economical
When the filtration media are otherwise comparable, moving to a larger housing can provide more media volume without adding another complete housing head, bracket, set of fittings, and service point. That is why going jumbo can often be less expensive per gallon than adding multiple small stages, provided the larger cartridge is appropriate for the contaminants you are targeting.
Do not use housing size as a substitute for the correct media. A larger carbon cartridge will not automatically address a contaminant that requires specialty media, and a larger sediment cartridge will not perform the same function as a carbon cartridge.
Browse replacement filter cartridges by media type and housing format before changing your system.
Mounting and service clearance
A housing should be installed where it can be supported, inspected, and serviced safely. This is especially important for jumbo systems.
The sump must be removable
The lower sump needs a clear path for removal. Measure the distance below the housing and check for:
- Cabinet shelves
- Frame rails
- Flooring
- Storage bins
- Plumbing
- Exterior doors
- Hoses
- Electrical components
A housing that technically fits in a compartment may still be unusable if the sump cannot drop far enough to clear the cartridge.
Full housings are heavy
A cartridge housing contains water during operation. Larger housings contain more water and therefore place more weight on the bracket, mounting surface, and fittings.
Use a stable mounting surface and support the system so the hose is not carrying the housing’s weight. Avoid allowing a large filter assembly to hang from a campground hose or a small plastic fitting.
For larger systems, consider:
- A rigid mounting bracket
- A backing plate or reinforced mounting surface
- Short, supported hose runs
- A shutoff valve before the filter
- A pressure gauge where appropriate
- Easy access to the sump wrench
- Protection from road debris if mounted outside
RV Water Filter Store offers jumbo filtration systems in configurations intended for larger-format cartridges and whole-RV applications. Even with a purpose-built system, confirm the available space and mounting structure in your RV.
Housing size and winterization
Every canister holds water that must be drained before freezing temperatures. Larger housings contain more water and can take longer to drain fully. A partially drained sump can still suffer freeze damage if trapped water expands.
Before winter storage:
- Turn off the source water.
- Relieve pressure by opening a faucet or filter drain point.
- Remove the cartridge from each housing.
- Empty the sump completely.
- Drain connected hoses and fittings.
- Inspect the O-rings for damage or debris.
- Store reusable cartridges according to their product instructions.
- Protect the housing from freezing.
- Follow the RV manufacturer’s winterization instructions for the rest of the plumbing.
Do not assume that opening a nearby faucet drains the filter housing. The housing may retain water below the cartridge or in a low section of the hose. A larger system may require more deliberate draining and more storage space for removed cartridges.
If you use RV antifreeze, follow the instructions for your RV plumbing and filtration equipment. Some filter media should not be exposed to antifreeze. Many owners remove cartridges and drain the housings separately rather than sending antifreeze through filtration media. When in doubt, follow the filter and RV manufacturers’ directions.
Housing size and water softeners
A water softener and a filter perform different jobs. A filter may reduce sediment, chlorine, taste, odor, or other contaminants depending on its media. A softener is intended to reduce hardness minerals through an ion-exchange process.
If hard water is damaging faucets, leaving scale on fixtures, or affecting the RV plumbing, a softener may be useful before or alongside filtration. It does not replace a sediment or carbon cartridge.
A practical arrangement may include:
- A pressure regulator at the campground connection
- A sediment stage to protect downstream equipment
- A water softener when hardness is a concern
- Carbon or specialty filtration selected for the source-water conditions
- A final drinking-water filter if desired
The order can depend on the equipment and manufacturer instructions. Avoid creating unnecessary pressure loss by adding equipment without checking the flow requirements of the entire setup.
Decision table: which housing size fits your travel style?
| Your situation | Starting point to consider | Why |
|---|---|---|
| Weekend trips, limited water use, compact storage | Compact inline or 2.5" × 10" | Easy to store and service; appropriate when filtration needs are limited |
| Small travel trailer or Class C with moderate use | Single or dual 2.5" × 10" | Common format with broad cartridge availability |
| Family RV with several fixtures | Dual 2.5" × 10" or larger format | Separate sediment and carbon stages while considering flow demand |
| Frequent full-time travel | 2.5" × 20" or 4.5" × 10" | More media volume can reduce service frequency when properly matched |
| High-sediment campground or well source | Larger sediment stage, often 4.5" × 10" or 4.5" × 20" | More cartridge area may provide better loading capacity and lower restriction |
| Large coach with high simultaneous demand | 4.5" × 10" or 4.5" × 20" | Larger diameter supports higher-flow system designs |
| Very limited exterior or storage space | Compact inline or 2.5" × 10" | Smaller footprint is easier to fit and protect |
| Water-quality concerns requiring several media types | Dual or triple system sized for the installation | Separate stages can address different jobs, but add service points and restriction |
| Hard water and scale concerns | Filtration plus an appropriately sized softener | Softening addresses hardness; filtration addresses separate water-quality concerns |
These are starting points, not universal prescriptions. If you regularly see pressure loss, inspect the cartridge and source pressure before replacing the entire system. If you change from a slimline system to a jumbo system, verify the bracket, fittings, cartridge format, and service clearance together.
Common sizing mistakes to avoid
Assuming every 10-inch cartridge fits every 10-inch housing
Nominal length is only one part of compatibility. Check diameter, center opening, end seals, cartridge style, and manufacturer requirements.
Measuring the cartridge but not the removal path
The cartridge may fit inside the sump while the sump itself cannot be removed from the RV compartment. Always measure service clearance.
Choosing a large housing without planning support
A jumbo housing is heavier when full. A weak bracket or unsupported hose can stress fittings and create leaks.
Adding stages to solve a capacity problem
If sediment is loading a small cartridge quickly, adding another small cartridge may not solve the underlying issue. A larger cartridge or better-matched sediment stage may be more appropriate.
Ignoring the source water
A cartridge’s service life depends heavily on incoming water quality. A system that works well at one campground may load much faster at another.
Forgetting winter storage
Larger housings hold more water. Remove cartridges, drain sumps, and protect the equipment from freezing.
Final sizing advice
Start by identifying the system you have, not the system you think you have. Measure the sump, cartridge, head fittings, and available service space. Then consider how much water you use, how often you travel, what problems you are trying to address, and how frequently you are willing to replace cartridges.
A 2.5-inch by 10-inch housing remains a practical choice for many RVers because it is compact and easy to service. A 2.5-inch by 20-inch housing can provide more media volume when vertical space is available. A 4.5-inch jumbo housing is often a better fit for higher flow, greater cartridge capacity, or whole-RV filtration. A compact inline filter is convenient when simplicity and portability matter more than stage flexibility.
The correct RV water filter cartridge must match the housing, but the correct housing must also match the RV. Consider filtration media, flow, mounting, storage, winterization, replacement availability, and water conditions together. That approach will help you choose a system that works reliably on the road without buying more size or complexity than your travel style requires.
