When an RV water filter is too restrictive, you notice it almost immediately: the shower feels weak, the kitchen faucet takes longer to fill a pot, and opening a second fixture makes the first one sputter.
The solution is not always “buy the highest-flow filter available.” A better approach is to understand how much water your RV actually uses, how much pressure is available at the campground, and how each filter cartridge affects flow as water passes through it.
For most RVs, a whole-RV filtration system should support at least 3 to 4 gallons per minute (GPM) under realistic operating conditions. If you regularly use multiple fixtures at once: or simply want a stronger, more residential-feeling shower: targeting 4 to 6 GPM gives you more breathing room.
The right flow rate depends on your rig, your travel habits, your campground water supply, and the level of filtration you want. Here is how to evaluate those factors without guessing.
What does GPM mean?
GPM means gallons per minute. It describes how much water can pass through a plumbing system, hose, valve, fixture, or filter during one minute of operation.
For example:
- A faucet flowing at 2 GPM delivers 2 gallons in one minute.
- A shower flowing at 2.5 GPM delivers 2.5 gallons in one minute.
- A filter rated for 4 GPM can pass up to 4 gallons per minute under its stated test conditions.
That last point is important. A filter’s GPM rating is not always the same as the amount of water your RV will receive at the showerhead. Actual flow depends on several connected components:
- Campground water pressure
- Your pressure regulator
- Hose length and diameter
- Filter housing size
- Filter cartridge type and condition
- RV plumbing diameter
- Water pump capacity when using the fresh-water tank
- The fixture itself
A filter can have a high theoretical flow rate and still provide weak water if the campground pressure is low or the cartridge is clogged. Likewise, a cartridge with a modest rated flow may work perfectly well when only one faucet is open.
Campground pedestal flow rate versus flow inside the RV
There are two different flow questions to answer:
- How much water is available at the campground pedestal?
- How much water reaches the fixtures inside your RV?
Those numbers are related, but they are not identical.
Flow at the campground pedestal
The campground spigot is your water source. Its available pressure and flow can vary considerably from site to site. One campground may provide strong pressure and plenty of volume, while another may have a low-flow spigot, aging plumbing, or several neighboring RVs drawing from the same supply line.
A pressure regulator protects your RV plumbing from excessive incoming pressure, but it can also become a restriction if it is undersized, clogged, or poorly adjusted. The same is true of a kinked hose, a partially closed valve, or a quick-connect fitting with a very small internal opening.
Your regulator should be installed before the filtration system so the filter and RV receive controlled water pressure. Many RV owners aim to keep incoming pressure around the 40-to-60 PSI range, but always follow the requirements of your RV manufacturer, regulator, filter housing, and plumbing components.
Pressure and flow are different measurements:
- Pressure is the force pushing water through the system.
- Flow is the volume of water moving through the system over time.
High pressure does not guarantee high flow if the supply line or filter cartridge cannot pass enough water. Conversely, a large-diameter filter system may maintain useful flow even when pressure is moderate because it creates less resistance.
Flow inside the RV

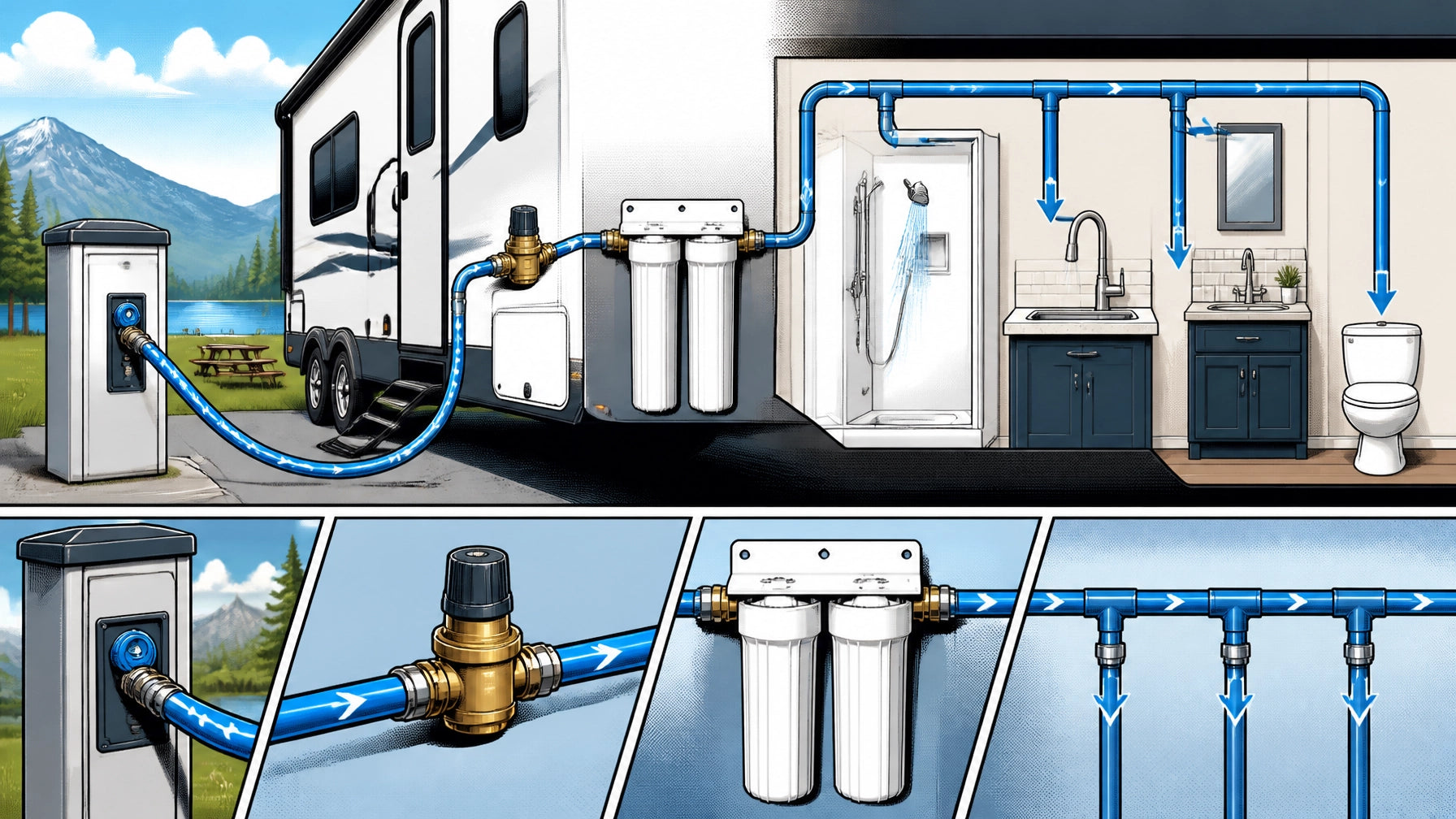

Inside the RV, water travels through additional restrictions before reaching a fixture. It may pass through:
- An exterior hose
- A pressure regulator
- One or more filter housings
- An inlet screen
- A check valve
- PEX tubing
- A manifold or distribution block
- A faucet aerator or showerhead
The flow at the showerhead is therefore the result of the entire system, not just the filter.
For example, suppose the campground provides 55 PSI. Your regulator reduces or controls that pressure, and the filter system creates a 10 PSI drop while flowing. The RV may receive approximately 45 PSI before accounting for additional losses through hoses, valves, and plumbing. If the cartridge is dirty and the filter drop rises to 20 PSI, the fixture may receive noticeably less pressure and flow.
That is why a filter can seem fine when new but become frustrating several weeks or months later.
How much flow do common RV fixtures use?
The following numbers are practical planning estimates for the fixtures specified in this article. Actual demand varies by model, aerator, pressure, and plumbing condition.
| RV fixture | Typical flow demand |
|---|---|
| Bathroom faucet | About 1.5 GPM |
| Kitchen faucet | About 2 GPM |
| Shower | About 2.5–3 GPM |
| Toilet flush | About 3–4 GPM momentarily |
| Washing machine | About 3–5 GPM |
These numbers do not mean every fixture runs at its maximum demand continuously. A toilet may draw 3 to 4 GPM only during part of a flush. A washing machine may open and close its water valve in short cycles. A faucet may be partially opened rather than running at full flow.
Still, the numbers help you size a filter based on real use.
One shower
A shower using 2.5 to 3 GPM requires a filter system that can provide at least that much flow without an excessive pressure drop. If the filter is only comfortable at 1 GPM, the shower may feel weak even when the campground supply is adequate.
Shower plus bathroom faucet
A shower at 2.5 GPM plus a bathroom faucet at 1.5 GPM creates a combined demand of approximately 4 GPM. This is a realistic scenario when one person is showering while another brushes teeth or washes hands.
For this use, a practical whole-RV target is at least 4 GPM.
Shower plus kitchen faucet
A shower at 2.5 to 3 GPM and a kitchen faucet at 2 GPM can create a combined demand of approximately 4.5 to 5 GPM. If your household commonly uses two fixtures at once, choosing a system with a practical flow rate closer to 5 or 6 GPM can prevent the first fixture from losing pressure when the second one opens.
Washing machine operation
A washing machine may draw approximately 3 to 5 GPM during its fill cycle. If a shower or faucet is operating at the same time, the combined demand can briefly exceed 6 GPM.
You may not need to size your entire filtration system around the absolute maximum of every fixture. But if you have a large motorhome, a washer, multiple occupants, and frequent simultaneous use, a higher-flow whole-RV setup can make daily life more comfortable.
Why restrictive filters ruin the RV experience
Water filtration always involves a balance between contaminant reduction and water movement.
A filter with larger openings or less-dense media generally allows water to pass more easily. A finer filter can capture smaller particles or provide more advanced treatment, but it usually creates more resistance. The smaller the passageways: and the more material the water must travel through: the greater the potential pressure drop.
A very restrictive cartridge can cause:
- A weak shower
- Slow faucet flow
- Sputtering when a second fixture opens
- Longer waits while filling a glass or cooking pot
- Slow fresh-water tank filling
- Reduced flow through an RV water heater
- More frequent cycling of the water pump
- Frustration that may be incorrectly blamed on the campground
The key is not to avoid fine filtration altogether. Instead, use the fine cartridge where it makes sense and provide enough filter surface area, housing capacity, and prefiltration to keep the system usable.
You can browse the available RV Water Filtration Systems and compare whole-RV configurations based on your water conditions and travel style.
Micron rating versus pressure drop
A micron rating describes the approximate size of particles a filter is designed to capture. It does not, by itself, tell you how much flow the filter will deliver.
A lower micron number generally means finer filtration. However, pressure drop depends on more than micron rating. Media type, cartridge length, surface area, water temperature, sediment loading, and flow rate all matter.
The following pressure-drop figures are useful planning estimates for common cartridge types:
| Cartridge type | Typical pressure drop |
|---|---|
| 50-micron sediment cartridge | Minimal drop when clean |
| 5-micron carbon block | About 5–8 PSI |
| 0.5-micron carbon block | About 12–15 PSI |
| 0.2-micron microbiological cartridge | About 18–25 PSI |
These figures should not be treated as universal specifications for every cartridge. Pressure drop changes with flow. A cartridge that loses 5 PSI at a low flow may lose more at a higher flow. A cartridge that is clean at the beginning of a trip may become much more restrictive after collecting sediment.
50-micron sediment filtration
A 50-micron sediment cartridge is relatively coarse. Its job is to capture larger particles such as sand, rust flakes, and visible debris before they reach the next stage.
When clean, this type of cartridge typically creates minimal pressure drop. It can be useful as a first-stage prefilter when campground water contains visible sediment or when you want to protect a more expensive carbon cartridge.
Because the media is coarse, it is not intended to provide the same level of fine particulate or contaminant reduction as a carbon block or microbiological cartridge.
5-micron carbon block filtration
A 5-micron carbon block can improve taste and odor while providing finer particulate filtration than a coarse sediment cartridge. A clean cartridge may create approximately 5 to 8 PSI of pressure drop under typical operating conditions.
For many RV owners, this is a reasonable balance between filtration and flow, particularly when the incoming campground water is not heavily contaminated with sediment.
0.5-micron carbon block filtration
A 0.5-micron carbon block is finer and can provide more substantial particulate reduction along with carbon treatment for chlorine, taste, and odor. Its typical pressure drop may be approximately 12 to 15 PSI.
That loss can be perfectly manageable in a properly sized whole-RV system, especially if the system uses a large cartridge or multiple stages. It becomes more noticeable when the cartridge is installed in a small inline housing, connected to a low-pressure campground spigot, or allowed to become clogged.
0.2-micron microbiological filtration
A 0.2-micron microbiological cartridge is designed for more advanced filtration and generally creates more resistance. Typical pressure drop may be approximately 18 to 25 PSI, depending on the cartridge, flow rate, water quality, and installation.
This level of filtration may be appropriate when your water concerns justify it, but it should be matched to your available pressure and desired flow. If you want advanced filtration throughout the RV, a larger staged system can help offset the restriction. If you primarily want highly filtered drinking water, point-of-use filtration may be more efficient.
The pressure-drop math that matters
Pressure drop is the difference between the pressure entering a filter and the pressure leaving it.
Pressure drop = inlet pressure − outlet pressure
For example:
- Inlet pressure: 55 PSI
- Outlet pressure: 43 PSI
- Filter pressure drop: 12 PSI
That 12 PSI loss may be expected for a clean 0.5-micron carbon block at a certain flow. If the outlet pressure later falls to 30 PSI under the same fixture demand, the cartridge may be loading with sediment or the system may have another restriction.
Pressure losses from multiple stages can also add together. Imagine a staged system with:
- 50-micron sediment stage: approximately 2 PSI
- 5-micron carbon block: approximately 6 PSI
- Additional fittings and hose: approximately 3 PSI
The total system loss could be about 11 PSI at the measured flow.
This does not mean you should simply add the maximum listed loss for every cartridge and assume that result will always occur. Cartridge pressure-drop figures are flow-dependent, and stages may be rated under different conditions. The useful takeaway is that every stage consumes some of your available pressure.
If your campground provides only 40 PSI and your complete filter setup consumes 18 PSI, the RV may receive approximately 22 PSI before internal plumbing losses. That may be enough for basic use but disappointing in the shower.
How to measure your actual RV flow rate
A bucket and a stopwatch can tell you more about your RV’s real-world performance than a marketing number printed on a package.
What you need
- A bucket with a known capacity
- A stopwatch or phone timer
- Your normal hose, regulator, and filter connected
- A fixture or exterior faucet
- A calculator
A 1-gallon bucket is convenient, but a larger container can make the measurement more accurate for higher flow rates.
Test at the campground connection
First, measure the available flow before the water passes through your RV filter.
- Disconnect the hose from the RV or filter inlet.
- Open the campground spigot fully.
- Place the hose into the bucket.
- Start the stopwatch as water begins filling the container.
- Stop the timer when the bucket reaches a known volume.
- Record the time.
Use this formula:
GPM = gallons collected ÷ seconds × 60
If a 1-gallon bucket fills in 15 seconds:
1 ÷ 15 × 60 = 4 GPM
If a 2-gallon bucket fills in 30 seconds:
2 ÷ 30 × 60 = 4 GPM
This gives you the approximate available flow at the pedestal.
Test after the filter
Reconnect your hose, regulator, and filter system. Perform the same test at the RV inlet or an exterior filtered-water outlet if your setup has one.
The difference between the first test and the second test shows how much flow the filter assembly and connected components are restricting.
For example:
- Campground spigot: 5 GPM
- After regulator and filter: 3.5 GPM
- Approximate system restriction: 1.5 GPM of lost capacity at that test condition
You can also test an interior fixture. Run the shower into a bucket for a measured interval, or collect water from the kitchen faucet. This will show the combined effect of the filter, RV plumbing, faucet aerator, and fixture.
Test with one fixture and two fixtures
For a useful household comparison, repeat the test under three conditions:
- One fixture open
- Two fixtures open
- The fixture that normally feels weakest open
If the shower delivers acceptable flow by itself but becomes weak when a faucet opens, your system may be near its practical capacity. If the flow is weak even with one fixture open, investigate the filter, regulator, hose, plumbing, and campground supply separately.
Symptoms that the filter is causing low flow
A low-flow complaint does not automatically mean the filter is the cause. But several symptoms point toward filter-related restriction.
The shower was strong when the cartridge was new
This is one of the clearest signs. If the shower gradually weakens over the life of the cartridge, sediment loading or carbon exhaustion may be restricting flow.
The filter housing looks dirty
A darkened, coated, or visibly loaded sediment cartridge indicates that the filter is doing work. It may also mean the cartridge is nearing the point where it restricts flow.
Water sputters when a second fixture opens
If one fixture works acceptably but the flow drops sharply when another opens, the total available flow is being exceeded or restricted somewhere upstream.
The fresh-water tank fills slowly
When connected to city water while filling the fresh-water tank, a restrictive filter can turn a normal filling process into a long wait. A clogged prefilter, blocked screen, or undersized inline filter may be responsible.
Flow improves when the filter is bypassed
If your RV has a filter bypass, use it briefly for diagnosis. If flow improves significantly with the filter removed or bypassed, inspect the cartridge and housing. Do not use bypass as a permanent substitute for filtration when water quality is a concern.
A pressure gauge shows a large inlet-to-outlet difference
A pressure gauge before and after the filtration stages can identify pressure loss directly. A high differential pressure usually means the cartridge is restrictive at that flow, the cartridge is loading with sediment, or a component is obstructed.
Staged filtration setups that protect flow
A staged system lets each cartridge perform a specific job instead of forcing one fine cartridge to handle every contaminant at once.
Option 1: Coarse sediment prefilter followed by carbon
This is a practical whole-RV arrangement for many travelers:
- Coarse sediment cartridge
- Carbon block cartridge
- Optional specialty or microbiological stage, depending on water conditions
The sediment stage catches larger particles first. That protects the carbon cartridge from premature loading and helps preserve flow. The carbon stage then focuses on chlorine, tastes, odors, and other treatment goals supported by its specifications.
If your campground water frequently contains visible sediment, rust, or sand, this arrangement can be especially useful. Keep spare cartridges available because a heavily loaded sediment filter should be replaced rather than forced to continue operating.
Option 2: Larger whole-RV system with multiple canisters
A larger housing provides more surface area for water to pass through. More surface area can reduce resistance at a given flow and extend cartridge life.
A dual- or triple-canister system can also separate filtration tasks. Instead of selecting one extremely fine cartridge and expecting it to do everything, you can use a sediment stage first, a carbon stage next, and a specialty stage only if your water conditions justify it.
The appropriate level depends on where you travel. A weekend camper visiting established municipal-water campgrounds may have different needs than a full-time RVer crossing regions with inconsistent water quality.
Option 3: Whole-RV sediment and carbon filtration plus point-of-use drinking water
If you want to protect RV fixtures and improve water throughout the rig but want the finest filtration only for drinking and cooking, a point-of-use setup may be the best flow compromise.
The whole-RV system can use a flow-friendly sediment-and-carbon arrangement for showers, toilets, and faucets. A separate under-sink drinking water system can provide finer treatment at the kitchen tap, where flow demand is lower and more controlled.
This prevents a highly restrictive drinking-water cartridge from limiting every fixture in the RV.
Option 4: Inline filter for compact, occasional use
An inline filter is convenient for short trips, simple hookups, or RV owners who want a compact connection between the hose and the rig. Inline filters can be easy to install and store, but their smaller size may provide less filter surface area than a multi-canister system.
If you choose an inline filter, pay attention to its rated flow and replace it on schedule. A small cartridge that works well for one faucet or a moderate shower may become the bottleneck for several fixtures operating together.
You can compare compact options in the In-Line Filters collection.
Do replacement cartridges affect flow?
Yes. Replacement cartridges are one of the most common sources of changing flow performance.
A cartridge can restrict water because:
- It is too fine for the available pressure
- It is undersized for the RV’s demand
- It is loaded with sediment
- It has been stored improperly
- It is installed backward, if directional installation is required
- The housing or cartridge does not match the system
- The cartridge has reached the end of its useful life
When replacing a cartridge, match the replacement to the housing, filtration stage, micron rating, and intended application. Do not select a cartridge solely because it has the lowest micron number.
A lower micron rating may be useful for a particular water concern, but it may also create more pressure drop. The best cartridge is the one that addresses your treatment goal while still supporting your required flow.
The Replacement Filter Cartridges collection includes carbon, sediment, specialty, and jumbo cartridge options. Keeping the correct replacement on hand helps prevent the temptation to use an old, overloaded cartridge for one more trip.
For frequent travelers, a replacement schedule or Subscribe & Save plan can help avoid running out of cartridges. Replace sooner if flow drops, the water source is unusually dirty, or the cartridge has reached its gallon or time limit.
How water softeners fit into the flow discussion
A water softener and a water filter solve different problems.
A filter is designed to reduce particles, chlorine, tastes, odors, and other contaminants according to its media and specifications. A softener addresses hardness minerals such as calcium and magnesium. Hard water can contribute to scale on fixtures, plumbing components, water heaters, and showerheads.
A portable RV water softener typically adds another component to the hookup, so it can contribute some pressure loss. The amount depends on the softener tank, resin condition, hose, fittings, and flow rate. A softener that is overdue for regeneration may not perform properly and may also affect the quality of the water experience.
If you use both systems, place them in the order recommended for your equipment. In many setups, sediment filtration before a softener helps protect the resin from debris, while whole-RV filtration can be arranged to address chlorine and taste. Follow the manufacturer’s instructions for the specific system.
Choose an 8,000-grain or 16,000-grain softener based on water hardness, household size, trip length, and regeneration convenience: not simply on the filter’s GPM number. If hard water is your primary concern, review the available RV Water Softeners separately from your filtration requirements.
Accessories that can quietly reduce flow
Accessories account for only a small part of your overall filtration decision, but they can make a noticeable difference when the system is already close to its flow limit.
Check these components if your filter appears to be performing correctly:
- Pressure regulator
- Hose diameter and length
- Kinks or flattened hose sections
- Quick-connect fittings
- Washers with blocked screens
- Inline check valves
- Partially closed spigot valves
- Clogged faucet aerators
- Showerhead screens
- RV inlet screens
A pressure regulator that is too restrictive can mimic a clogged filter. A quick connect with a small internal passage can also limit flow, particularly when a high-flow whole-RV system is connected to several narrow fittings.
Use a regulator that protects your RV while allowing the flow your rig requires. Then test the system with the regulator installed, because testing without it does not represent normal operating conditions.
A practical flow-rate target for your RV
Use these targets as a starting point:
- One person and one fixture at a time: Aim for at least 2.5 to 3 GPM.
- Typical couple or family use: Aim for at least 3 to 4 GPM.
- Shower plus faucet at the same time: Prefer approximately 4 to 5 GPM.
- Multiple fixtures, washer, or residential-feeling flow: Consider approximately 5 to 6 GPM or more.
- Advanced fine filtration throughout the RV: Use staged filtration and adequate housing size to manage pressure drop.
- Fine drinking-water filtration only: Consider a point-of-use system so the entire RV plumbing does not carry that restriction.
The correct number is the flow your RV can deliver at the fixtures: not merely the maximum printed on the cartridge.
Final checklist before choosing or changing a filter
Before buying a replacement or changing your filtration setup, ask:
- What is the measured flow at my campground connection?
- What pressure remains after my regulator?
- How much flow does my shower use?
- Do I regularly operate two fixtures at once?
- Does my cartridge have a rated flow and a separate maximum flow?
- How much pressure drop is expected at my normal GPM?
- Is the cartridge clean, correctly installed, and sized for the housing?
- Would a sediment prefilter protect the finer stage?
- Would point-of-use drinking-water filtration make more sense?
- Are my hose, regulator, and quick connects large enough for the system?
For most RV owners, 3 to 4 GPM is the practical minimum for comfortable whole-RV use, while 4 to 6 GPM provides a better margin for simultaneous fixtures. Fine filtration can be valuable, but it must be matched with adequate pressure, enough filter surface area, and a sensible staged design.
Measure your actual flow, identify where pressure is being lost, and select filtration based on both water quality and daily use. That approach keeps your shower comfortable, your faucets usable, and your RV’s water cleaner without adding restriction you do not need.
For additional context on standard shower flow and water-efficient showerhead performance, see the EPA WaterSense showerhead information. Cartridge flow and pressure-drop values vary by model and operating conditions; consult the specifications for the exact cartridge and system you use.
