Hard water is the silent saboteur of RV adventures. If you have ever stepped out of your motorhome shower feeling like a layer of soap is stubbornly glued to your skin, or noticed crusty white mineral buildup choking your aerators and ruining your coffee maker heating element, you are dealing with dissolved calcium and magnesium. Campground water sources across North America vary wildly from pristine mountain snowmelt to hard, mineral-laden well water boasting total dissolved solids (TDS) well over 500 parts per million.
Installing a portable water softener is one of the single best upgrades you can make to protect your RV’s complex internal plumbing, water heater tank, fixtures, and appliances. However, many RVers invest in a quality softener only to struggle with incorrect plumbing sequences, pressure drops, or improper flushing techniques.
Whether you are looking at our compact RV Water Softeners collection for weekend getaways or heavy-duty dual-tank systems for full-time living, this comprehensive plumbing guide walks you through every phase of positioning, plumbing, operating, bypassing, and winterizing your system correctly.
1. Where to Position Your RV Water Softener: Exterior vs. Permanent Installation
Before you attach a single hose, you need to decide where your water softener will live. For the vast majority of RVers, exterior placement is the standard, most practical choice.
Exterior Placement: The Gold Standard for Portable Units
Portable RV water softeners: such as our popular Essential 8k and 16k grain units: are purpose-built for mobility. They are compact, heavy-duty resin cylinders designed to sit outside your rig on the campground pad, inside your basement utility storage bay, or right next to the pedestal.
- Accessibility: Exterior placement makes regeneration (adding salt) clean and straightforward. You never have to haul wet, salty brine solutions through your motorhome's living area.
- Space Efficiency: RV interior space is at a premium. Keeping the softener in your basement bay or on the ground outside preserves valuable storage real estate for gear, leveling blocks, and tools.
- Leak Mitigation: Even the most robust plumbing connections can occasionally weep under fluctuating campground water pressure. Keeping the unit outside or in a dedicated basement compartment with a drain ensures that any stray drips or regeneration spills never damage your rig's subflooring.
Permanent Installation Considerations
While some full-time RVers and custom motorhome owners plumb permanent water softeners directly into their utility bays, portable units offer the ultimate flexibility. If you move from a campground with moderate water hardness (8–10 grains per gallon) to extreme hard water (20+ grains per gallon), a portable unit can be easily accessed, regenerated, or even swapped out. If you do choose a dedicated basement bay installation, ensure you have easy access to the fill cap, drain port, and bypass valves without needing contortionist maneuvers every time you set up camp.

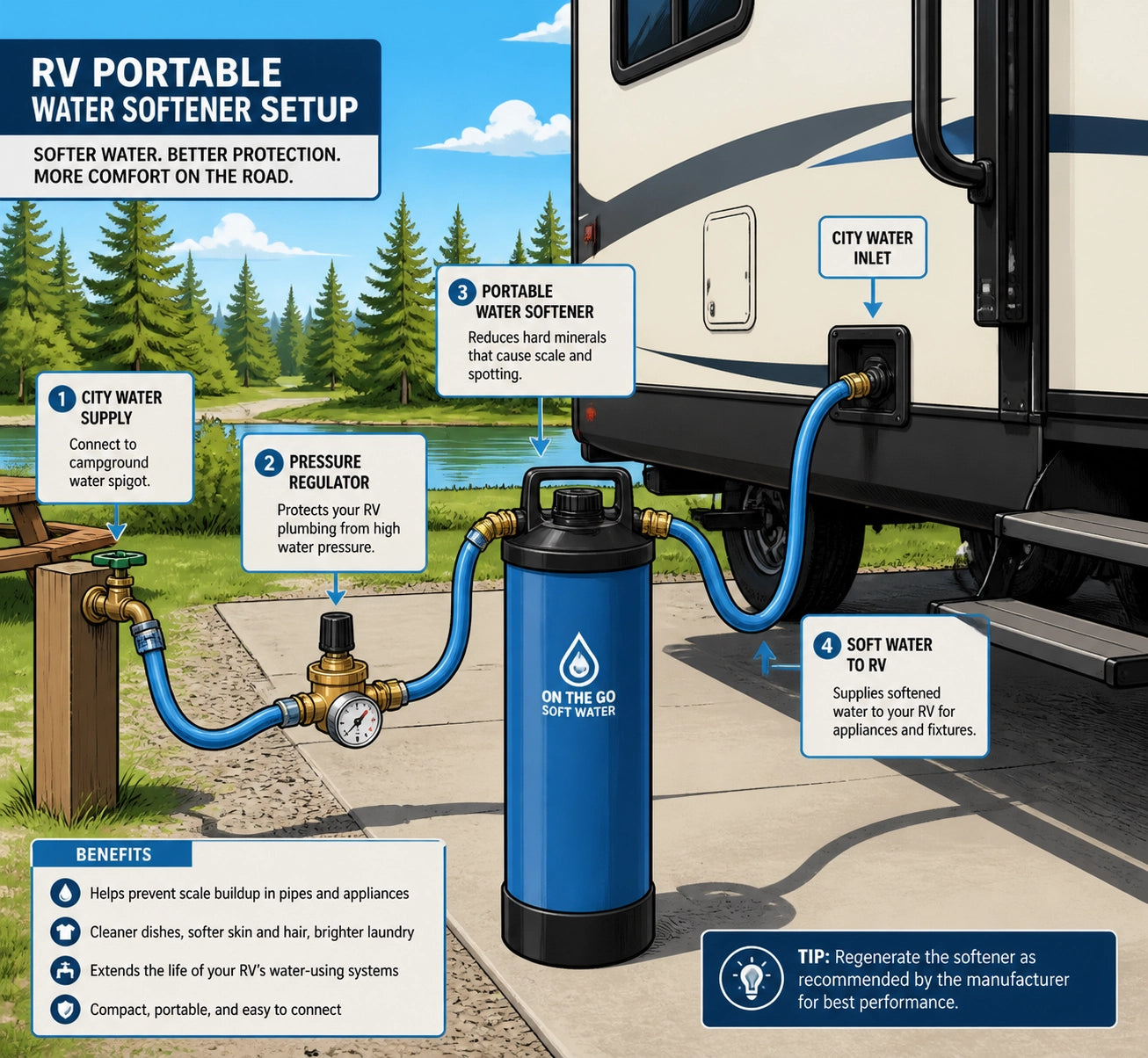

2. Understanding the Connection Sequence: Spigot to RV Inlet
Getting the plumbing order right is critical for protecting both your water softener and your downstream filtration equipment. The golden rule of RV water plumbing is maintaining the correct sequence from the campground source to your coach.
The Correct Plumbing Sequence
- Campground Water Spigot (The source)
- Adjustable Water Pressure Regulator (Protects all downstream hoses and equipment)
- RV Water Softener (Removes calcium and magnesium hardness)
- Whole-RV Water Filtration System (Removes sediment, chlorine, and chemical contaminants)
- RV Fresh Water Inlet (Feeds clean, softened, filtered water into your coach)
Why Put the Softener Before the Filter?
A common point of confusion among RVers is whether the water softener should go before or after the whole-house filter. Always place your water softener before your particulate and carbon filters.
When hard water passes through standard carbon filter cartridges or sediment housings, dissolved calcium and magnesium precipitate out under heat and pressure, coating the filter media and inner housing walls with scale. This drastically shortens cartridge life and degrades flow rates. By softening the water first, you ensure that hardness minerals are stripped away before they ever touch your RV Water Filtration Systems cartridges, extending filter life and keeping your system running at peak efficiency.
When Do You Need a Sediment Pre-Filter?
While softeners excel at removing dissolved minerals, they are not sediment filters. If a campground features heavy sand, silt, rust flakes, or organic debris, running raw water straight into your softener can foul the resin bed, clogging the internal distributor baskets.
If you frequently stay in parks with dirty, untreated well water, consider adding a simple high-flow sediment pre-filter before the softener inlet:
- Spigot → Pressure Regulator → Sediment Pre-Filter → Water Softener → Whole-RV Filter → RV Inlet
This sacrificial pre-filter catches coarse grit, leaving your expensive water softener resin pristine and unclogged.
3. Hoses, Fittings, and Eliminating Pressure Drop
Nothing ruins a great RV shower faster than a sluggish trickle. Standard garden hoses sold at big-box hardware stores often feature restrictive internal diameters (frequently 1/2 inch or less) and thick, inflexible walls that kink easily and create massive pressure drops.
Upgrading to High-Flow Plumb Lines
To maintain optimal water flow throughout your coach: especially when running the shower, washing dishes, and flushing the toilet simultaneously: you should utilize professional-grade components:
- 3/4-Inch High-Flow Hoses: Always use full-flow hoses with a true 3/4-inch inner diameter. This prevents water starvation across long hose runs between the campground pedestal and your RV inlet.
- Custom No-Kink Hoses: Look for reinforced, UV-resistant drinking-water-safe hoses that resist kinking even when coiled tightly in cold weather or baked in direct summer sunlight.
- Brass Quick-Connects: High-quality brass quick-connect fittings save your wrists and knuckles from endless threading and unthreading during setup and tear-down. Ensure your quick-connects feature full-port internal openings to avoid bottlenecking water flow.
Additionally, always pair your setup with one of our precision Adjustable Regulators connected directly to the campground spigot. Controlling your incoming pressure (typically set between 45 and 55 PSI) safeguards your softener tanks, filter housings, and PEX plumbing from unexpected municipal pressure surges.
4. Step-by-Step Installation and Flushing Guide
Follow these exact steps every time you set up your portable RV water softener at a new campsite to ensure flawless operation and crystal-clear water.
Step 1: Position the Softener Upright on a Level Surface
Set your portable softener on a flat, stable surface near your RV water bay or directly on the ground pad. Never lay a water softener on its side or tilt it at an extreme angle during operation or transport. The internal riser tube and upper distributor basket must remain perfectly vertical so water flows evenly down through the resin bed rather than channeling through empty voids.
Step 2: Connect the Inlet Hose from Your Pressure Regulator
Attach your adjustable pressure regulator directly to the campground water spigot. Run your high-flow feeder hose from the outlet side of the regulator to the port marked IN on your water softener head. Wrap male pipe threads with 2 to 3 wraps of PTFE (Teflon) tape in a clockwise direction, and hand-tighten the fittings securely. A gentle snug with pliers is acceptable if needed, but do not overtighten and crack plastic housing threads.
Step 3: Perform the Initial Flush (Crucial Step!)
Before connecting the outlet side of your softener to your RV, you must flush the system.
- Attach a short flush hose or place a bucket under the port marked OUT.
- Open the campground spigot slowly to let water enter the system.
- Run at least 5 gallons of water through the softener to waste.
- This initial flush washes out manufacturing resin fines (tiny microscopic beads produced during manufacturing), settles the resin bed, and purges any trapped air from the cylinder. Once the water runs crystal clear and free of bubbles, shut off the spigot.
Step 4: Connect the Outlet Hose to Your Filter or RV Inlet
Connect your second high-flow hose from the softener OUT port to the inlet of your whole-RV water filter system (or directly to your RV's city water inlet if you aren't running downstream filtration). Ensure all threaded connections are snug and sealed with PTFE tape.
Step 5: Pressurize Slowly and Check for Leaks
Slowly turn the campground spigot back on, allowing the water pressure to build gradually inside the softener tank and hoses. Listen for the rush of air escaping through your RV faucets (open a cold water tap inside the rig to bleed air lines). Once water flows smoothly inside your coach, walk the entire external plumbing line and inspect every connection. If you spot a minor drip, give the fitting a slight tightening turn until bone dry.
5. Using Bypass Valves: Saving Softened Water for What Matters
Water softeners require regeneration salt. When you are washing the exterior of your rig, rinsing mud off your tow vehicle, or flushing your black holding tank, you do not want to burn through your precious softened water and salt supply on utility chores.
The RV Bypass Setup
If your portable softener features a built-in bypass valve, operating it is as simple as turning the valve handle from Service to Bypass.
If your unit utilizes standard inlet/outlet hose connections without an integrated valve, you can easily create an external bypass loop using a brass garden hose Y-valve or dual-valve manifold at the spigot:
- Normal Service Position: The valve directs water through the pressure regulator into the softener IN port, delivering luxurious, softened water for showers, drinking, and cooking throughout the interior of your RV.
- Bypass Position: By switching your Y-valve or manifold, raw campground water bypasses the softener entirely and runs straight to your utility line or outdoor washdown port.
Use raw water for:
- Washing dust and road grime off your motorhome or trailer exterior.
- Rinsing muddy hiking boots, pets, or outdoor gear.
- Flushing black and gray holding tanks.
- Watering campsite grass or plants.
Save your softened water strictly for interior drinking, cooking, teeth brushing, dishwashing, and bathing. This dramatically extends the time between salt regenerations, saving you time, money, and hassle on the road.
6. Winter Storage and Cold Weather Protection
Freezing temperatures are the mortal enemy of water softeners and RV plumbing alike. When water freezes inside a sealed fiberglass or polyethylene resin tank, it expands with incredible force, cracking the outer tank wall, destroying the control head, and ruining the internal resin bed.
How to Winterize Your Portable Water Softener
When temperatures are forecasted to drop below freezing (32°F / 0°C) and you are breaking camp or prepping your rig for storage, follow these steps:
- Disconnect and Isolate: Shut off the campground water spigot, relieve system pressure by opening an RV faucet, and unscrew both the inlet and outlet hoses from your water softener.
- Drain Completely: Tip the softener upright and gently tilt it side to side to drain all standing water from the internal tank and valve head. Residual water trapped in the resin bed can expand and split the cylinder.
- Blow Out Remaining Moisture: If you have an air compressor with a blowout plug, attach a regulated low-pressure air line (not exceeding 30 PSI) to the inlet port to force out any hidden pockets of water.
- Store Indoors: Store your drained water softener in a temperature-controlled environment such as a basement, garage, or heated RV storage bay over the winter months. Never leave a filled water softener sitting in an unheated rig during sub-freezing winter storage.
7. Common RV Water Softener Mistakes to Avoid
Even seasoned RVers occasionally fall into plumbing traps that compromise water quality or damage equipment. Avoid these four common mistakes:
1. Laying the Softener on Its Side
As emphasized earlier, portable softeners must remain upright during operation. Laying a tank on its side causes the internal distributor tube to shift or snap under the weight of the shifting resin bed, allowing unsoftened water to bypass the media entirely.
2. Running Hot Water Through the Softener
Portable RV water softeners are engineered for cold water lines only. Never plumb a water softener downstream of an RV water heater or connect it to a hot water source. High water temperatures (typically above 120°F / 49°C) will warp plastic internal components, melt resin beads, and permanently destroy the unit.
3. Placing the Softener After the Filter
Putting your water softener after your carbon or sediment filters allows raw, hard water to coat your filter housings and cartridges with scale, choking flow rates and forcing premature cartridge replacements. Always put the softener first in line.
4. Overtightening Plastic Hose Connections
Connecting hoses to brass or plastic softener heads requires a firm, hand-tight seal backed up with PTFE tape. Cranking down hard with large channel-lock pliers will strip threads, crack male adapters, and cause frustrating leaks at your campsite.
Summary and Product Recommendations
Investing in a portable RV water softener transforms your camping experience, eliminating dry skin, itchy hair, spotty glassware, and rock-hard mineral scale on your plumbing fixtures.
To help you get started, explore our top-rated equipment:
- Essential 8k Grain Portable Softener: Perfect for solo travelers and couples in weekend trailers, offering fast regeneration and compact storage.
- Essential 16k Grain Portable Softener: Ideal for larger families and full-time RVers in big motorhomes who need higher capacity between salt cycles.
- Custom No-Flow Restriction Hoses & Brass Quick-Connects: Engineered specifically to maintain maximum water pressure and eliminate kinks across your entire external plumbing run.
Got questions about sizing your softener or dialing in your campground plumbing? Drop a comment below or reach out to our team of RV water experts: we have been keeping travelers in clean, soft water since 1992!
